Dahua / Intercom Outdoor Station / 24 VDC Power Adapter / 5 Year Warranty / DH-ADS-110DL-19-1

DH-ADS-110DL-19-1

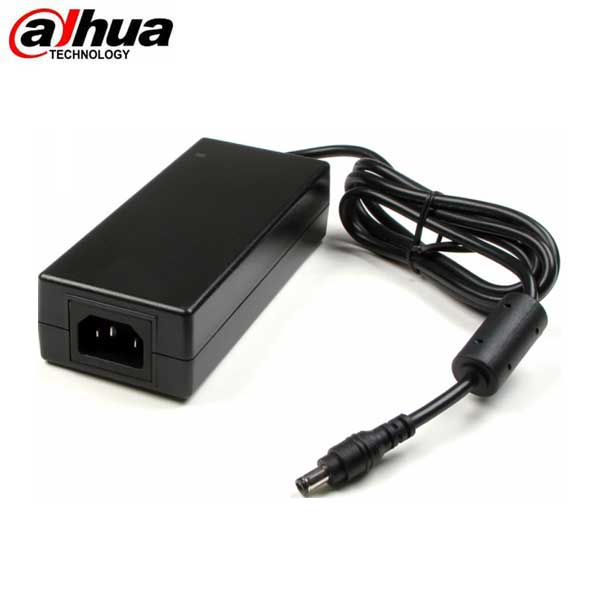

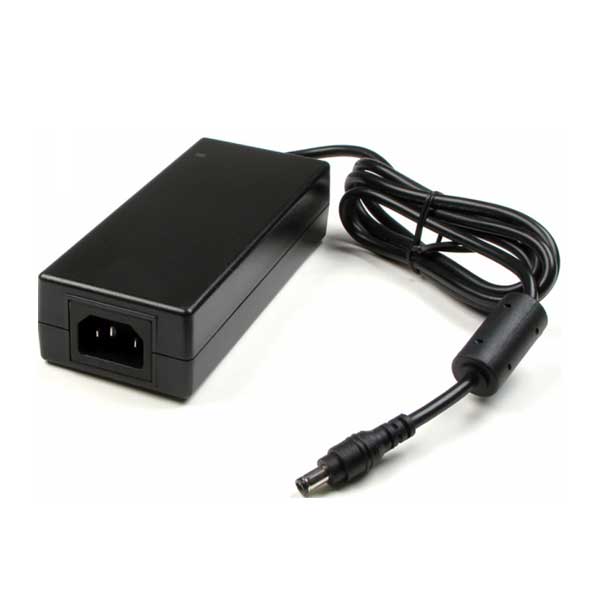

Dahua's  24 VDC, 3 A Power Adapter For Dahua PoE Switch.

Features:

• Supports 100 VAC to 240 VAC Wide-range Voltage Input
• 24 VDC, 3 A Power Output
• CE, UL, EAC, RCM Certification
• Compatible with VTNS1060A Network Power Supply and VTNC3000A Two-wire Network Controller
• For VTO1210C-X-S outdoor station
• Five-year Warranty (for products sold through authorized Dahua Dealers)
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!

Power Input
Input Voltage, Nominal	100 VAC to 240 VAC, 50/60 Hz
Input Voltage Range	90 VAC to 264 VAC, 47 /63 Hz
Input Current	≤ 1.5 A-rms at 100 to 240 VAC at full load
Efficiency	≤ 1.5 A-rms at 100 to 240 VAC at full load
Inrush Current (Cold Start)	Input fuse operational under cold start at 115/230 Vrms
Leakage Current	3.5 mA, maximum (264 V, 50 Hz)
Certifications
Safety	IEC 60950-1:2005+A1+A2 AS/NZS 60950.1:2011 Inc A1 GMA-501915-EA
Electromagnetic Compatibility (EMC)	FCC CFR 47 Part 15 subpart B ANSI C63.4 - 2009 EN 55022:2010, EN 55024:2010+A1:2015, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC 61000-4-2:2008,
Power Output
Output Voltage, Nominal	24 VDC
Output Voltage Adjust Range	22.8 to 25.20 VDC
Line Regulation	± 2%
Residual Ripple (PARD) 20 MHz BW	300 mVpp (Input Voltage: 115 V to 230 V)
Output Current	3 A, maximum
Rise Time	10% to 90%, ≤ 50 ms at 100 V to 240 V Input/Output, maximum load
Hold-up Time	10 ms, typical, at 115 VAC Input 20 ms, typical, at 230 VAC Input
Dynamic Load Response
Condition	Load step from 20% to 80% to 20% R/S: 0.10 A/uS
Transient Response Recovery Time	≤ 30 ms
Result	±5%, Dynamic Voltage
Environmental
Operating Temperature	0° C to 40° C (32° f to 104° F)
Operating Humidity	10% to 90% RH
