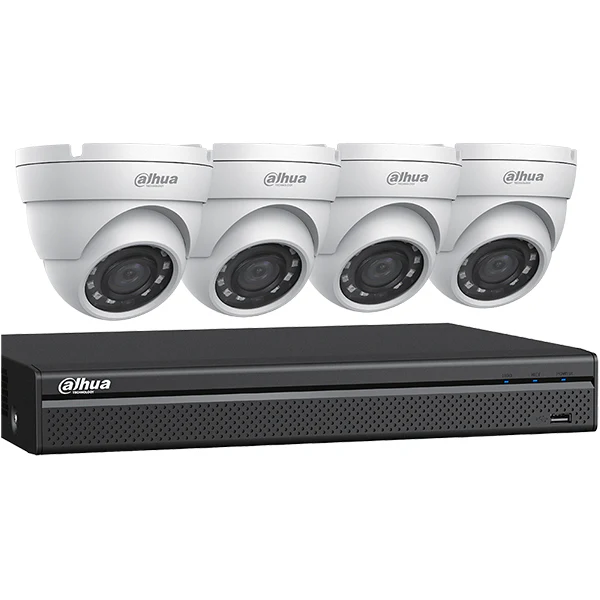

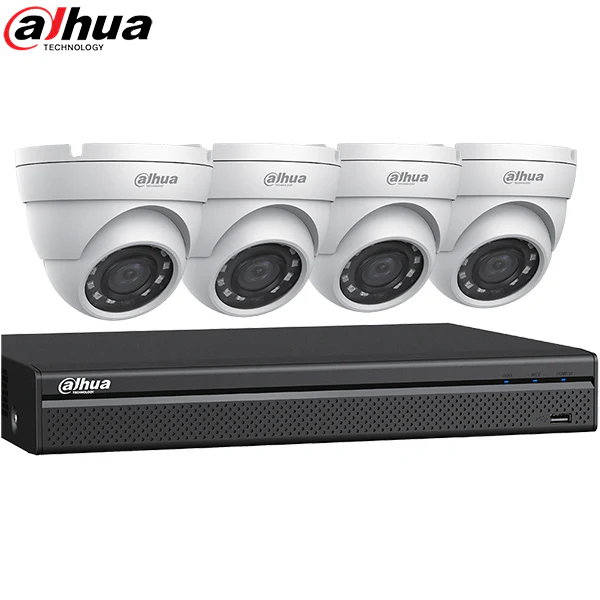

Dahua / HDCVI DVR Kit / 4 Channels / 4K Penta-brid DVR / 4 x 2MP / 2.8mm lens / Mini Eyeball / 2 TB HDD / DH-C544E42

Dahua / HDCVI DVR Kit / 4 Channels / 4K Penta-brid DVR / 4 x 2MP / 2.8mm lens / Mini Eyeball / 2 TB HDD / DH-C544E42

DH-C544E42

  • 4 MP HDCVI Cameras
  • 4 MP at 30 fps Resolution
  • 2.8 mm Fixed Lens
  • Maximum IR Length 30 m (98 ft) with Smart IR
  • IP67 Ingress Protection
  • 4K HDCVI DVR
  • Embedded Processor
  • Four (4) Channel Penta-brid Recorder
  • Support for 4+2 IP Channels
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4K at 7 fps or 1080p at 30 fps Maximum Record Rate
  • Automatically Detects HDCVI, AHD, TVI, and CVBS Inputs
  • 24 Mbps Incoming Bandwidth
  • Become a registered dealer of Dahua


Technical Specification

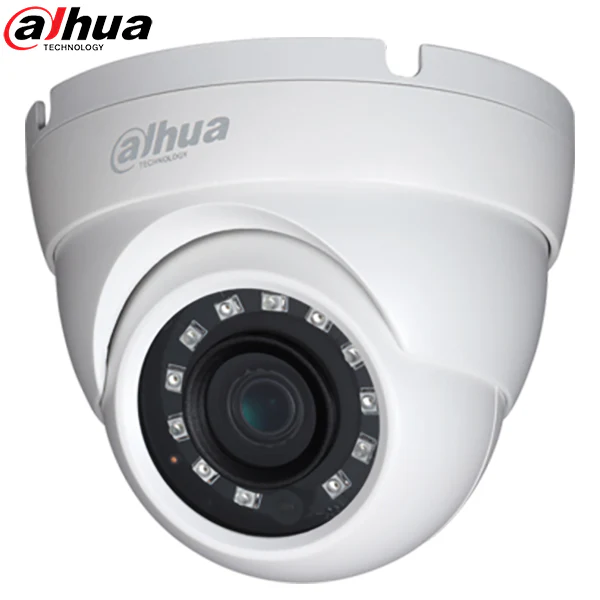

A511K02 HDCVI Camera
Camera
Image Sensor 1/2.7-in. CMOS
Effective Pixels 2592 (H) x 1944 (V), 5 MP
Scanning System Progressive
Electronic Shutter Speed 1/30 s to 1/100000 s
Minimum Illumination Color: 0.02 Lux at F1.85 (30 IRE)
0 Lux with IR on
S/N Ratio More than 65 dB
IR Distance Up to 30 m (98.04 ft)
IR On/Off Contro Auto, Manual
IR LEDs 12
Lens
Lens Type Fixed Lens / Fixed Iris
Mount Type Board-in
Focal Length 2.8 mm
Max Aperture F1.85
Horizontal Angle of View 103°
Close Focus Distance 900 mm (35.43 in.)
DORI¹ Distance - Detect (8 ppf) 63 m (207 ft)
DORI¹ Distance - Observe (19 ppf) 25 m (82 ft)
DORI¹ Distance - Recognize (38 ppf) 13 m (43 ft)
DORI¹ Distance - Identify (76 ppf) 6 m (20 ft)

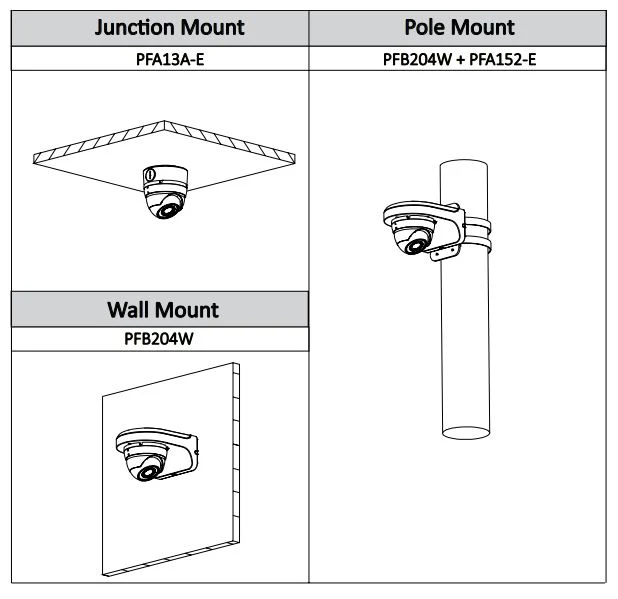

Installation Angle
Range Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°
Video
Resolution 4 MP
Frame Rate 4 MP at 30 fps,
1080p at 30 fps
Video Output One (1) BNC HDCVI High-definition Channel or
One (1) BNC CVBS, AHD or TVI Channel, switchable
Video Transmission²
RG-59/U Coax 720p: 800 m (2624.67 ft)
1080p: 500 m (1640.42 ft)
4 MP: 500 m (1640.42 ft)
RG-6/U Coax 720p: 1200 m (3937.01 ft)
1080p: 800 m (2624.67 ft)
4 MP: 700 m (2296.59 ft)
CAT 6 UTP (balun required) 720p: 450 m (1476.38 ft)
1080p: 300 m (984.25 ft)
4 MP: 300 m (984.25 ft)
Day/Night Auto (ICR), Manual
OSD Menu Multi-language
BLC Mode BLC, HLC, DWDR
WDR Digital WDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto, Manual
Smart IR Auto, Manual
Certifications
Safety EN55032, EN55024, EN50130-4
UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility
(EMC)		 FCC CFR 47 FCC Part 15 Subpart B
ANSI C63.4-2014
Electrical
Power Supply 12 VDC ±30%
Power Consumption Maximum 3.6 W (12 VDC with IR on)
Environmental
Operating Conditions –40° C to +60° C (–40° F to +140° F),
Less than 95% RH
Initiate startup above –40° C (–40° F)
Storage Conditions ––40° C to +60° C (–40° F to +140° F),
Less than 95% RH
Ingress Protection IP67
Construction
Casing Aluminum

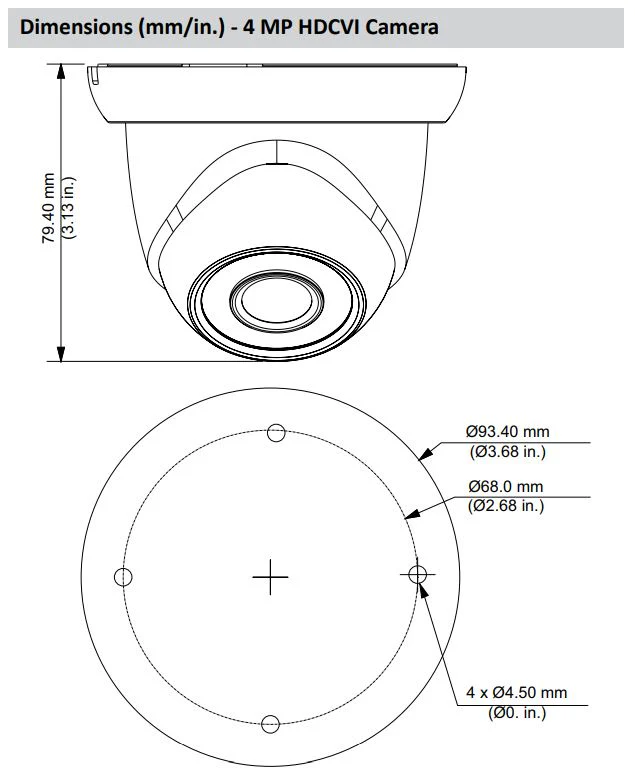

Dimensions ø93.40 mm × 79.40 mm (ø3.68 in. x 3.13 in.)
Net Weight 0.28 kg (0.62 lb)
Gross Weight 0.38 kg (0.84 lb)
Camera
Image Sensor 1/2-in. CMOS
Effective Pixels 3840 (H) x 2160 (V), 8 MP
Scanning System Progressive
Electronic Shutter Speed 1/30 s to 1/100000 s
Minimum Illumination Color: 0.005 Lux at F1.6 (30 IRE) 0 Lux with IR on
S/N Ratio More than 65 dB
IR Distance Up to 50 m (164.04 ft)
IR On/Off Control Auto, Manual
IR LEDs Two (2)
Lens
Lens Type Fixed Lens / Fixed Iris
Mount Type Board-in
Focal Length 2.8 mm
Max Aperture F1.6
Horizontal Angle of View 87°
Focus Control Auto, Manual
Close Focus Distance 1800 mm (70.87 in.)
DORI² Distance - Detect (8 ppf) 84 m (276 ft)
DORI² Distance - Observe (19 ppf) 34 m (112 ft)
DORI² Distance - Recognize (38 ppf) 17 m (56 ft)
DORI² Distance - Identify (76 ppf) 8 m (27 ft)
Installation Angle
Range Pan: 0° to 360°
Tilt: 0° to 70°
Rotation: 0° to 360°
Video
Resolution 8 MP (3840 x 2160)
Frame Rate - HDCVI 8 MP at 15 fps,
6 MP at 20 fps, or
4 MP at 30 fps
Frame Rate - TVI 5 MP at 20 fps 4 MP at 30 fps
Frame Rate - AHD 5 MP at 20 fps 4 MP at 30 fps
Frame Rate - CVBS 960H
Video Output One (1) BNC HDCVI 4K Ultra High-definition Channel or
One (1) BNC CVBS, AHD or TVI Channel, switchable
Video Transmission³ - RG-59/U Coax 720p: 800 m (2624.67 ft)
1080p: 500 m (1640.42 ft)
4K: 500 m (1640.42 ft)
Video Transmission³ - RG-6/U Coax 720p: 1200 m (3937.01 ft)
1080p: 800 m (2624.67 ft)
4K: 700 m (2296.59 ft)
Video Transmission³ - CAT 6 UTP (balun required) 720p: 450 m (1476.38 ft)
1080p: 300 m (984.25 ft)
4K: 300 m (984.25 ft)
Day/Night Auto (ICR), Manual
OSD Menu Multi-language
BLC Mode BLC, HLC, WDR
WDR True WDR (120 dB)
Gain Contro AGC
Noise Reduction 2D, 3D
White Balance Auto, Manual
Smart IR Auto, Manual
Certifications
Safety EN55032, EN55024, EN50130-4 UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014
Interface
Audio Input: One (1) Channel, RCA Jack, and One(1) Built-in Microphone
Electrical
Power Supply 12 VDC ±30%
Power Consumption Maximum 8 W (12 VDC with IR on)
Environmental
Operating Conditions –30° C to +60° C (–22° F to +140° F), Less than 90% RH Initiate startup above –30° C (–22° F)
Storage Conditions –30° C to +60° C (–22° F to +140° F), Less than 90% RH
Ingress Protection IP67
Construction
Casing Aluminium
Dimensions ø106.0 mm × 99.20 mm (ø4.17 in. x 3.90 in.)
Net Weight 0.50 kg (1.10 lb)
Gross Weight 0.62 kg (1.37 lb)

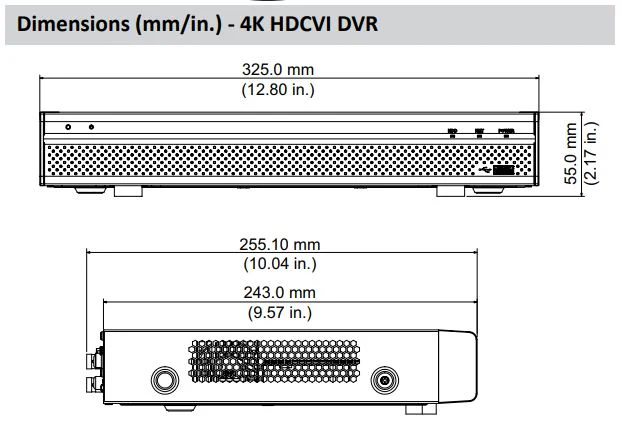

X71A1H2 4K HDCVI DVR
System
Main Processor Embedded Processor
Operating System Embedded LINUX

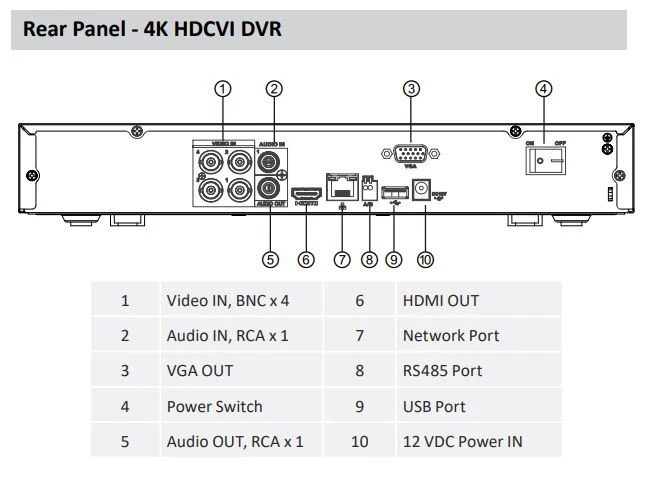

Interface
Analog Camera Input Four (4) Channels, BNC
HDCVI 8 MP, 6 MP, 4 MP, 1080p at 30 fps,
720p at 60 fps, 720p at 30 fps
AHD 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps
TVI 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps
CVBS NTSC
IP Camera Input 4+2 Channels, each channel up to 8 MP
Audio Input: One (1) Channel, RCA
Output: One (1) Channel, RCA
Two-way Talk Reuse Audio In/Out, RCA
Recording
Compression Smart H.265+, H.265, Smart H.264+, H.264
Recording Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 4 M-N (1280 x 1440),
1080p, 720p, 960H, D1, CIF
Record Rate
Main Stream Channel 1:
• 8 MP at 7 fps
• 6 MP at 10 fps
• 5 MP at 12 fps
• 4 MP or 3 MP at 15 fps
Channels 2 to 4:
• 4 K-N at 7 fps
• 4 MP or 3 MP at 15 fps
• 4 M-N or 1080p at 30 fps
Sub Stream • 960H at 15 fps
• D1 or CIF at 30 fps
Maximum Incoming
Bandwidth		 24 Mbps
Bit Rate 32 Kbps to 6144 Kbps per Channel
Record Mode Manual, Schedule (Regular, Continuous),
MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 to 60 minutes (default: 60 minutes),
Pre-record: 1 to 30 s,
Post-record: 10 to 300 s
Audio Compression AAC (first channel only), G.711A, G.711U, PCM
Audio Sample Rate 8 KHz, 16 bits per Channe
Audio Bit Rate 64 Kbps per Channel
Display
Interface One (1) HDMI One (1) VGA
Spot Output HDMI or VGA, configurable
Native Output Resolution - HDMI 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720
Native Output Resolution - VGA 1920 x 1080, 1280 x 1024, 1280 x 720
Maximum Decoding One (1) Channel of 8 MP at 30 fps
Four (4) Channels of 4 MP at 15 fps
Four (4) Channels of 4 M-N at 30 fps
Multi-screen Display
IP extension
mode disabled		 1/4
IP extension
mode enabled		 1/4/6
On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Network
Interface One (1) RJ45 (1000 Mbps) Port
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server,
P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
Maximum User
Access		 128 Users
Mobile Operating
System		 IOS, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm Input 16 Channels
$120.96

Original: $345.59

-65%
Dahua / HDCVI DVR Kit / 4 Channels / 4K Penta-brid DVR / 4 x 2MP / 2.8mm lens / Mini Eyeball / 2 TB HDD / DH-C544E42—

$345.59

$120.96
