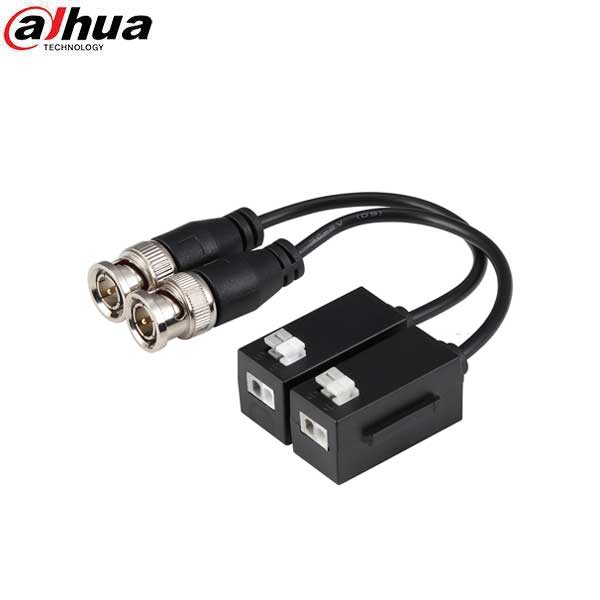

Dahua / HDCVI Balun / Passive / 1 Channel / 4K / DH-PFM800-4K

DH-PFM800-4K

• One (1) Channel Balun
• Real-time Transmission over UTP CAT5E/6 Cable
• Compatible with HDCVI, TVI, AHD, and CVBS Video Formats
• Transmission Distance at 4K: 200 m (656 ft)
• External Power Supply not Required

• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!




Technical Specifications

Video
Transmission Signal	One (1) Channel
Category Type	UTP CAT5E/6
Transmission Distance, maximum	HDCVI, TVI, AHD: 720p: 400 m (1312.34 ft) 1080p: 250 m (820.21 ft) 4 MP, 6 MP, 8 MP: 200 m (656.17 ft)
Video Transmission Properties and Ports
Coaxial Video Connector	BNC-M
Connection Way	RJ45
Compatible Format	HDCVI, AHD, TVI, CVBS
Resolution	720p, 1080p, 4 MP, 5 MP, 6 MP, 8 MP
Protection
ESD	1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2
UTP Cable Connector	2 KV (different-mode), 4 KV (common-mode), per IEC1000-4-5
Impedance
BNC Male	75 Ω
UTP Cable	100 Ω
Physical Properties
Shell	ABS
Color	Black
Dimensions	6.84 in. x 0.77 in. x 0.80 in



Downloads

• Data Sheet
