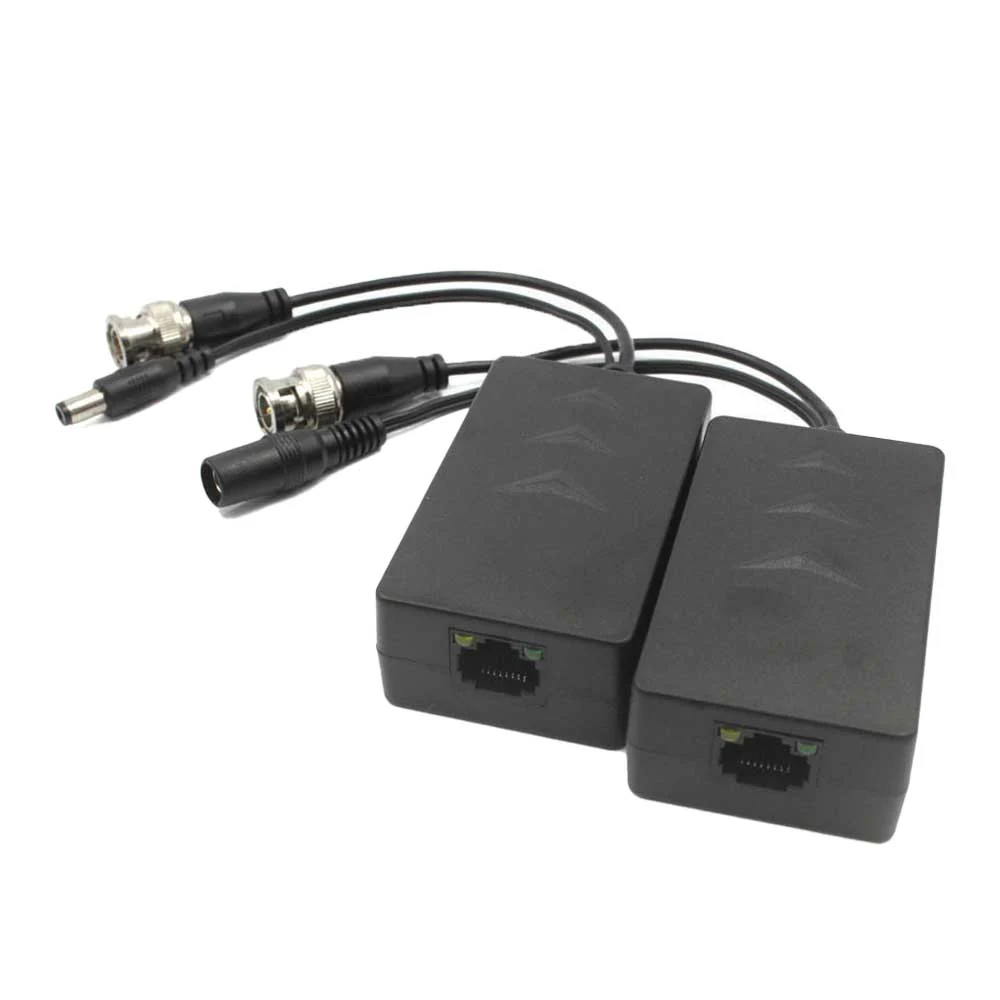

Dahua / HDCVI Balun / Passive / 1 Channel / DH-PFM801
DH-PFM801
- Input voltage 24 VDC to 36 VDC
- Provides 12 VDC, 8 W Power Supply to Remote Cameras
- Real-time Video Transmission without Delay or Interference.
- Transmission distance: 300 m (984 ft)
- Transmit one-channel HD Video and one channel DC Power over a UTP (CAT-5E or CAT-6) Cable
- Surge Protection and Anti-interference Protection
- RJ45 Standard Connection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Technical Specification
| Video | |
| Transmission Signal | One (1) Channel |
| Maximum Transmission Distance | HDCVI 720p: 400m (1312.34ft) 1080p: 200m (820.21ft) |
| Category Type | UTP CAT 5E/6 |
| Video Transmission Properties and Ports | |
| Coaxial Video Connector | BNC-M |
| Connection Way | RJ45 |
| Compatible Format | HDCVI, AHD, TVI, CVBS |
| Resolution | 720p, 1080p |
| Anti-interference | > 60 dB |
| Protection | |
| ESD | 1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2 |
| Coaxial Cable Connector | 2 KV (common-code) per IEC1000-4-5 |
| UTP Cable Connector | 2 KV (different-code), 4 KV (common-code), per IEC1000-4-5 |
| Impedance | |
| BNC Male | 75 Ω |
| UTP Cable | 100 Ω |
| Physical Properties | |
| Dimensions | 72.6mm*42.5mm*24.5mm |
| Shell | ABS |
| Color | Black |
| Net Weight | 66.4g/57.4g |
| Stability | |
| MTBF | > 10000 h |
| Environmental | |
| Operating Temperature | –10 °C to +55 °C (14 °F to 131 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to 158 °F) |
| Humidity | 0 to 95%, non-condensing |
| Certification | CE, FCC |
Dimensions
Application
Downloads
