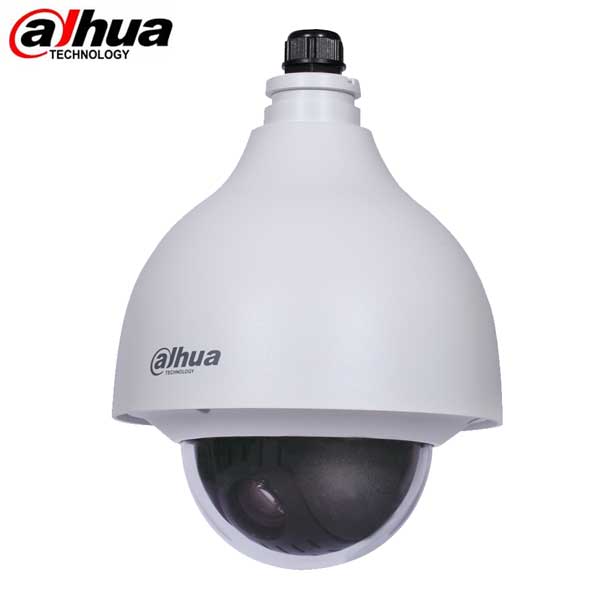

Dahua / HDCVI / 2MP / PTZ Dome Camera / Varifocal / 5.3-64mm Lens / Outdoor / WDR / IP66 / Starlight / 5 Year Warranty / DH-40212IC

DH-40212IC

The Dahua 40212IC HDCVI 2 MP Starlight PTZ Dome Camera features a 1/2.8-in. STARVIS CMOS imager with a 12x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications, day or night. The camera offers a built-in heater and IP66 Ingress Protection to extend its use to the harshest environments. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.

Features

• 1/2.8-in. 2 MP STARVIS Progressive-scan CMOS Sensor
• Powerful 12x Optical Zoom
• Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
• Starlight Technology for Ultra-low Light Sensitivity

• 1080p at 30 fps or 720p at 30/60 fps, Maximum Resolution
• True Wide Dynamic Range (120 dB), 3D DNR
• IP66 Ingress Protection, IK10 Vandal Resistance
• Designed for Extreme Temperature Environments
• Five-year Warranty (for products sold through an authorized Dahua Dealer)

• Call 1-800-878-6604 for Dealer Prices!

Specifications

	Camera
Image Sensor	1/2.8 in. STARVIS CMOS
Effective Pixels	1920(H) x 1080(V), 2 MP
Scanning System	Progressive
Electronic Shutter Speed	1/3 s to 1/300,000 s
Minimum Illumination	Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6
S/N Ratio	More than 50 dB
	Lens
Focal Length	5.3 mm to 64 mm
Max Aperture	F1.6 to F3.0
Angle of View	Horizontal: 4.9° to 58.4°
Optical Zoom	12x
Focus Control	Auto, Manual
Close Focus Distance	100 mm to 1000 mm (3.94 in. to 39.37 in.)
	PTZ
Pan/Tilt Range	Pan: 0° to 360° endless Tilt: –2° to 90° Auto flip 180°
Manual Control Speed	Pan: 0.1° to 300° /s Tilt: 0.1° to 120° /s
Preset Speed	Pan: 300° /s; Tilt: 200° /s
Presets	300
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented Focal Length / Speed Adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
Protocol	DH-SD, Pelco-P/D (Auto recognition)
	Video
Resolution	1080p (1920 × 1080) 720p (1280 × 720)
Frame Rate	1080p at 30 fps or 720p at 30/60 fps
Video Output	One (1) Channel, BNC High-definition Video Output (HDCVI, AHD, TVI) or CVBS Standard Definition Video Output (switchable)
Transmission Distance	RG-59/U Coax : 720p: 500 m (1640.42 ft) 1080p: 400 m (1312.34 ft) RG-6/U Coax: 720p: 800 m (2624.67 ft) 1080p: 600 m (1968.50 ft) CAT 6 UTP: 720p: 380 m (1246.72 ft) 1080p: 380 m (1246.72 ft)
Day/Night	Auto (ICR), Color, B/W
OSD Menu	English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish
Backlight Compensation	BLC, HLC, WDR (120 dB)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto, Manual
Noise Reduction	Ultra DNR (2D/3D)
Advanced Features	Defog
Digital Zoom	16px
Flip	180°
Privacy Masking	Up to 24 areas
	Interface
Video	Output: One (1) BNC
Audio	Input: One (1) Channe
RS485	One (1) Port
Alarm	Input: Two (2) Channels Output: One (1) Channel
	Certifications
CE	EN55032, EN55024, EN50130-4
Safety	UL60950-1+CAN/CSA C22.2,No.60950-1
Electromagnetic Compatibility (EMC)	FCC Part 15 subpart B ANSI C63.4- 2014
	Electrical
Power Supply	24 VAC, 1.5 A (±10%)
Power Consumption	10 W, 19 W with heater on
	Environmental
Operating Temperature	–40 °C to 60 °C (–40 °F to +140 °F), Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10
	Construction
Casing	Metal
Dimensions	ø186.20 mm x 234.40 mm (ø7.33 in. x 9.23 in.)
Net Weight	2.30 kg (5.07 lb)
Gross Weight	4.30 kg (9.48 lb)

Downloads

• Data Sheet
• Installation Manual
