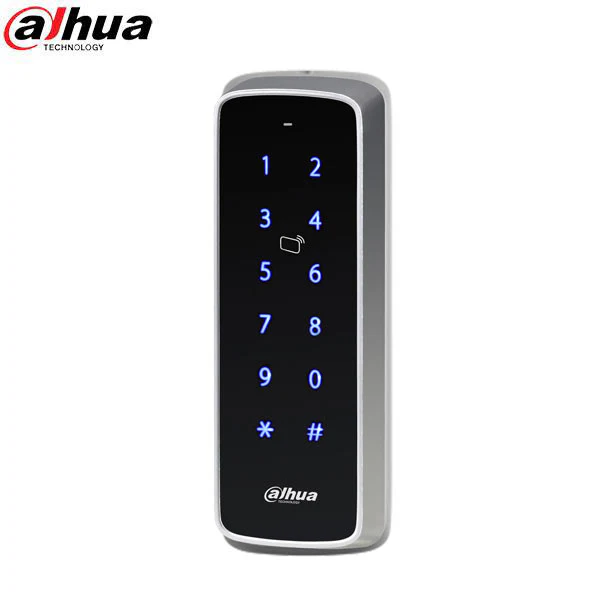

Dahua - ASR1201D - RFID Reader - Slim - Waterproof - IP55 - Watch Dog - Outdoor

DH-ASR1201D

This is a Dahua ASR1201D Slim Water-proof RFID Reader with Watch Dog functionality.

Features

• Supports RS485, Wiegand34 protocol (Wiegand 26 optional)

• 13.56MHz (Mifare)
• Red and Blue LEDs
• Watch dog function ensure device free from halting
• Water-proof (Outdoor use)
• Surface/Flush mounted installation
• IP55 Rating
• Four-year Warranty (applies to products sold through an authorized Dahua Dealer)
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Specifications

System
Main Processor	8 Bit
Read
Read Format	13.56MHz
Read Range	1cm–3cm (max.)
Reading time	<0.1s
Function
Tamper Alarm	Yes
Interface
To Controller	RS485, Wiegand34 (Wiegand 26 optional)
General
Keypad	12Keys (0-9,*,#)
LED Indicator	Yes
Beep Tone	Buzzer
Ingress Protection	IP55
Power Supply	9V–15V DC/100mA
Operating Temperature	-30°C to +60°C
Working Humidity	≤95%
Dimension (W×D×H)	135 x 47.5 x 16mm
Weight	0.18kg
Working Environment	Outdoor
Certificates
CE	Yes
FCC	Yes
