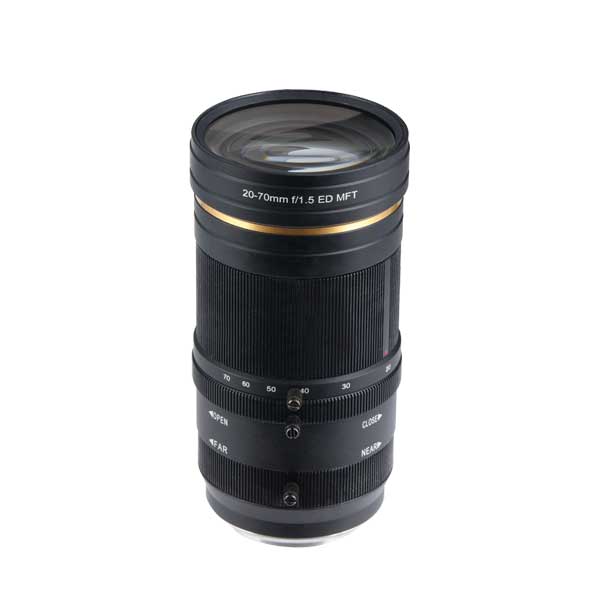

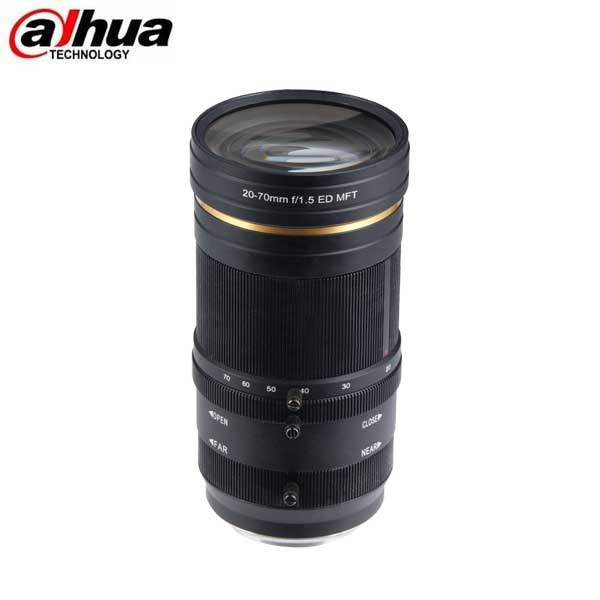

DH-PFL2070-J12M

• 4/3-in. 12MP Lens
• 20 mm to 70 mm Vari-focal Lens
• M43 Mount
• Designed for Extreme Temperature Environments
• Five-year Warranty (for products sold through an authorized Dahua Dealer)
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Technical Specifications

Image Format	4/3-in.
Focal Length	20 mm to 70 mm
Lens Pixel	12MP
Aperture	F1.5
Mount	M43
Field of View (D*H*V)	W: 46.9°(D)x37.2°(H)x27.6°(V)~T: 14.2°(D)x11.2°(H)x8.4°(V)
4096 x 2160 (17:9)	Wide: 55.0° x 48.1° x 24.9° Tele: 17.9° x 15.9° x 8.4°
3704 x 2778 (4:3)	Wide: 55.0°x 43.3°x 32.2° Tele: 17.9°x 14.4°x 10.8°
3840 x 2160 (16:9)	Wide: 52.1°x 45.0°x 24.9° Tele: 17.0°x 14.9°x 8.4°
Lens Control	Focus: Manual Iris: Manual
Minimum Object Distance	3.0 m (9.84 ft)
Dimensions	ɸ73.0 mm x 149.20 mm (ɸ2.87 in. x 5.87 in.)
Weight	0.99 kg (2.18 lb)
Operating Temperature	–30° C to 70° C (–22° F to 158° F)
Humidity	<90% RH
Certifications	FCC 47 CFR Part 15 Subpart B EN 55032, EN 55024, EN50130-4
