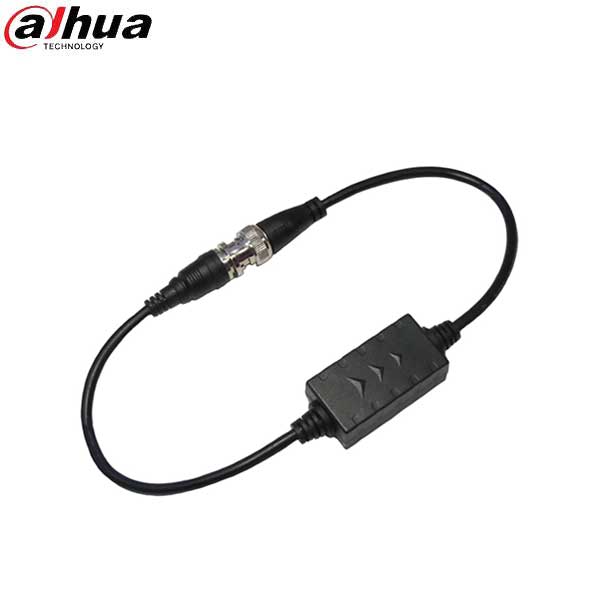

Dahua / Accessories / HD Video Isolator / Indoor / 15.75in. / DH-PFM791

DH-PFM791

• HD video isolator, to solve the HDCVI image interference caused by ground loops effectively
• Apply to indoor or in junction box
• Working Temperature: -20~55℃
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Technical Specifications

Properties
Insertion Loss	0.50 dB
Frequency Response	0 to 65 MHz
Input Impedance	75 Ω
Output Impedance	75 Ω
Isolation Voltage	800 V, minimum
Isolation Resistance	100 mΩ
Protection
ESD Protection	Contact Discharge: 600 V Air Discharge: 8000 V per IEC61000-4-2
Surge Protection	4 KV 10/700 µs, per IEC61000-4-5
Reliability
MTBF	> 20,000 h
Physical Properties
Dimensions
Unit	42.0 mm x 22.50 mm x 16.0 mm (1.65 in. x 0.89 in. x 0.63 in.)
Length	400 mm (15.75 in.)
Shell	ABS
Color	Black
Environmental
Operating Temperature	–20° C to +55° C (–4° F to 131° F)
Storage Temperature	–40° C to +70° C (–40° F to 158° F)
Relative Humidity	0% to 95%
