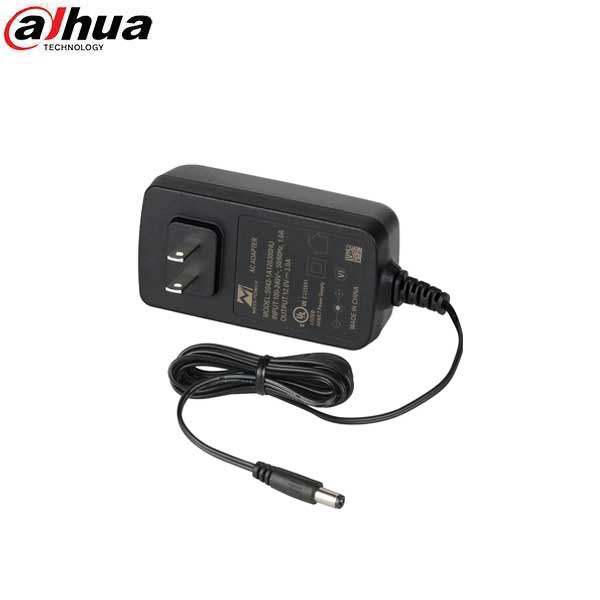

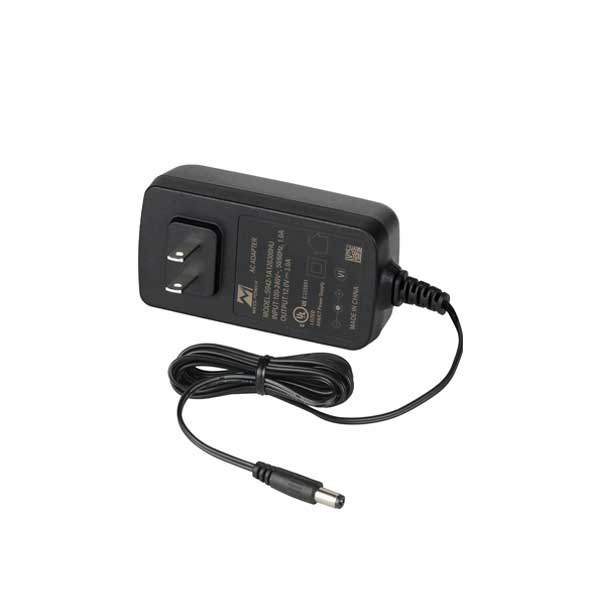

Dahua / 12 VDC, 3 A Power Adapter / DH-S042-1A120300HU

DH-S042-1A120300HU

• 12 VDC, 3 A Power Adapter
• Supports 90 VAC to 264 VAC Wide-range Voltage Input
• Meets the Demands of Voltage Fluctuation
• 4KV Outdoor Lightning Protection
• Two-year Warranty (for products sold through an authorized Dahua Dealer)
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Specifications

Electrical
Input	90 VAC to 264 VAC, 50/60 Hz
Output Voltage	12 VDC (+7%, -3%)
Output Current	3 A
Maximum Power Output	36 W
No Load Power Consumption	< 0.3 W
Protection
Protections	Surge protection, Over temperature, Over current, Voltage load
ESD	IEC61000-4-2. ±6 kV Contact; ±8 kV Air
Surge	Surge: EN61000-4-5 Combination Wave: Common Mode ±4KV (12 Ω) Differential Mode ±2kV (2 Ω)
Environmental
Operating Temperature	–10° C to +55° F (14° F to 131° F)
Operating Humidity	< 90%, Relative
Physical Properties
Dimensions (L x W x H)	101.50 mm x 51.10 mm x 55.60 mm (4.0 in. x 2.01 in. x 2.19 in.)
Installation Mode	Wall-mount
Color	Black
Input Plug	2-pin North American Plug
Outgoing Cord	DC wire: 1500.0 mm (59.06 in.)
DC Plug	⌀5.50 mm x ⌀2.10 mm x 10.0 mm (⌀0.22 in. x ⌀0.08 in. x 0.39 in.)
Certifications
Safety	UL
