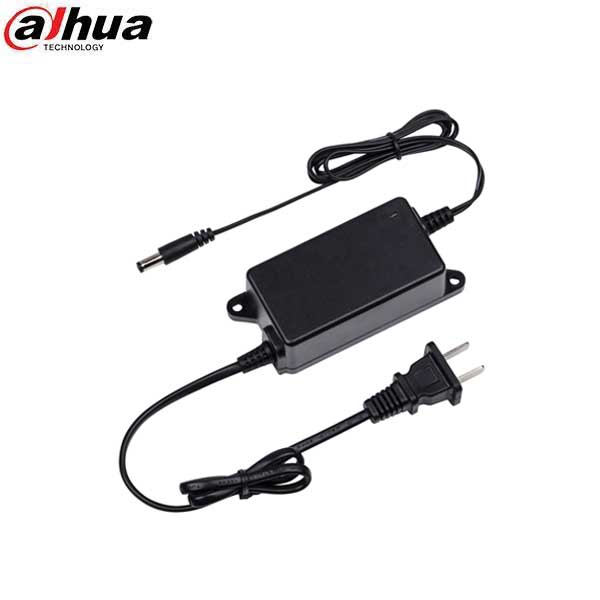

Dahua / 12 VDC, 2 A Power Adapter / DH-PFM320D-US

DH-PFM320D-US

• 12 VDC, 2 A Power Adapter
• Visual Indicator when Power Present
• Full Power Efficiency at –30 °C to +70° F (–22 °F to 158 °F)
• Accurate Over-current and Over-voltage Protection
• Surge Protection
• Two-year Warranty (for products sold through an authorized Dahua Dealer)
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!





Specifications

Electrical
Input	100 VAC to 240 VAC, 50/60 Hz, 0.6 A
Output	12 VDC, 2A (+7%, –3%)
Protection
Protections	Surge, Over-temperature, Over-current, Voltage Load
ESD	EN61000-4-2. ±4 kV Contact; ±8 kV Air
Surge	EN61000-4-5
Combination Wave	Common Mode: ±4 kV (12 Ω); Differential Mode: ±2 kV (2 Ω)
Environmental
Operating Temperature	–30 °C to +70° F (–22 °F to 158 °F)
Operating Humidity	95%, Relative
Physical Properties
Dimensions (L x W x H)	104.0 mm x 45.0 mm x 33.0 mm (4.09 in. x 1.77 in. x 1.30 in.)
Installation Mode	Plane Installation
Color	Black
Input Plug	2-pin North American Plug
Cord Lengths	AC Cord: 500.0 mm (19.69 in.) DC Cord: 800.0 mm (31.50 in.)
DC Plug	⌀5.50 mm x ⌀2.10 mm x 12.0 mm (⌀0.22 in. x ⌀0.08 in. x 0.47 in.)
Certifications
Safety	CE, FCC, UL-VI
