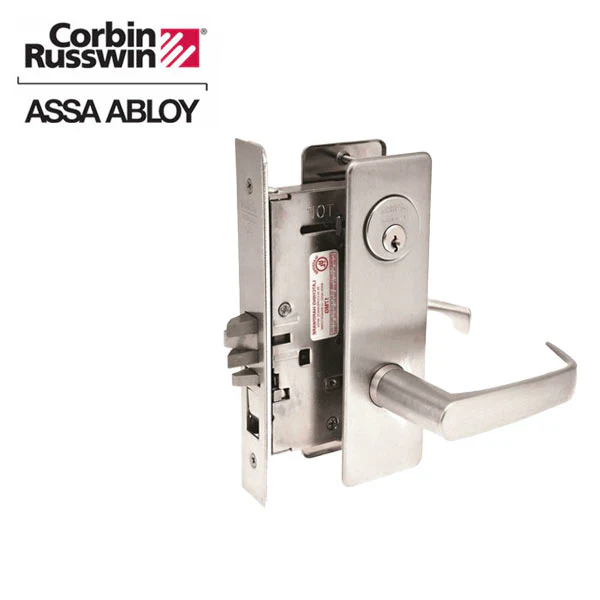

Corbin Russwin - Mechanical Mortise Lock - Classroom - CSM Trim - GA Keyway - Grade 1 - Satin Stainless Steel - RHR

CRN-ML2003-CSM-GA-630-RHR

The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features the patented quick reversible latchbolt, and a 1" stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

Features:

• Patented Quick Reversible feature enables reversal of hands without disassembling the lock case.
• Security trims provide a vandal-resistant barrier.

• Multi-function lockbody, allowing 12 functions to be configured from one lockbody
• Accepts cylinders of most other manufacturers.

• Can be used with new or existing Corbin Russwin key systems, including patented high-security Access 3 cylinders
• Provides life safety and security in a single door prep, saving the additional cost of a deadlock

• Through-bolted trim designs for proper alignment and increased security.
• Right hand reversible



Specifications:

Construction:	Heavy-gauge Steel
Function:	F05 - Classroom
Door Thickness:	1-3/4" (44mm) standard
Backset:	2-3/4"
Handing:	Factory Handed, But quickly reversible
Strike:	ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center
Deadbolt:	One-piece stainless steel 1" Throw
Cylinder:	Brass 6-Pin GA Keyway
Keys Included:	2
Latch bolt:	2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw
Trim:	Lever: Cast Escutcheon: Wrought
Lockcase:	Heavy-gauge steel, 5-7/8"x4"x15/16"
Certifications:	ANSI/BHMA Certified A156.13 Series 1000, Grade 1, Meets A117.1 Accessibility Code.
Manufacturer's Warranty:	10 Year limited warranty
