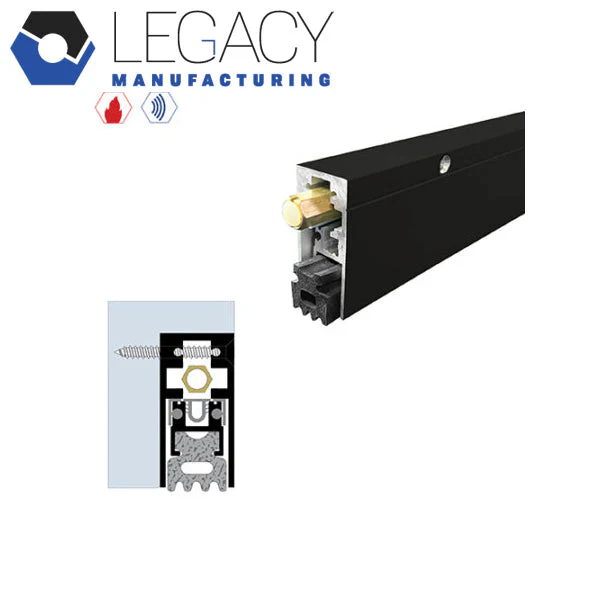

Legacy Manufacturing - 7263 - Semi-Mortised Automatic Door Bottom - 29/32" x 1-15/16" - Matte Black Powder Coat - Optional Length

Legacy Manufacturing - 7263 - Semi-Mortised Automatic Door Bottom - 29/32" x 1-15/16" - Matte Black Powder Coat - Optional Length

COMPETITOR EQUIVALENT


LEGACY NGP PEMKO ZERO
7263 420N 430ARL 362AA
    FINISHES
    • CA – Clear Anodized
    • DB – Dark Bronze Anodized
    • MB – Matte Black Powder Coat
    • WP – White Powder Coat
    OPTIONS
    • EA – Electrical Actuator
    • FL – Fire Label
    • LS – Light Spring
    • PULL – Pull
    • PV – Pivot Doors
    • SF – Security Fasteners
    • SL – Sliding Doors
    • TD – Top Door Installation
    • MB-EC – Matte Black End Cap
    FEATURESΒ
    • Can be made any size from 12" to 144".
    • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
    • 5 million cycles tested.

    Β

    MATERIALS / SPECIFICATIONS
    • Sponge Rubber Extrusion is Black
    • Aluminum is Clear Anodized
    • Screws are standard (#8 x 1-1/2" SMS self-drilling screws) supplied
    • Brass Hex Nut
    • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
    • Self-leveling door seal up to maximum 1" drop.
    • Replacement closed cell sponge neoprene – Part #4363SPR
    • Unit supplied standard with 1 pair of end caps – Part #4163EC-AP.
