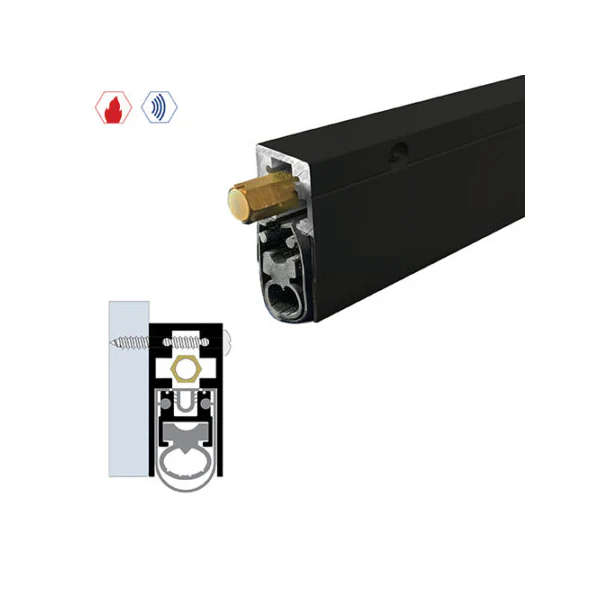

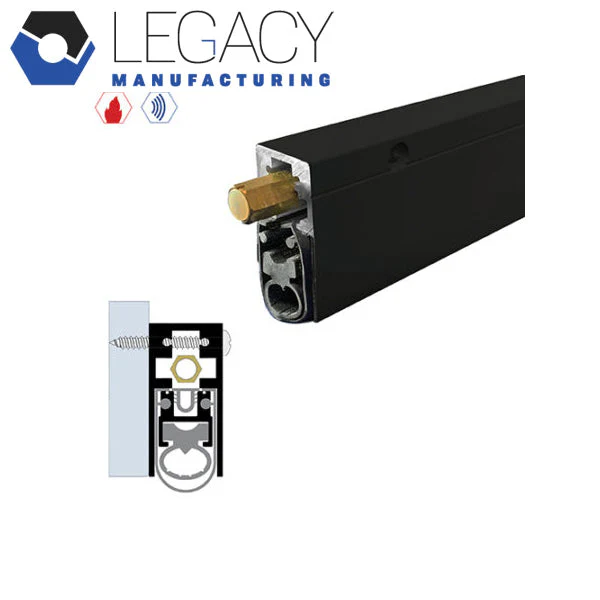

Legacy Manufacturing - 7763 - Surface Automatic Door Bottom - 29/32" x 1-15/16" - Matte Black Powder Coat - Optional Length

Legacy Manufacturing - 7763 - Surface Automatic Door Bottom - 29/32" x 1-15/16" - Matte Black Powder Coat - Optional Length

COMPETITOR EQUIVALENT


LEGACY NGP PEMKO ZERO
7763 – – 367AA
    FINISHES
    • CA – Clear Anodized
    • DB – Dark Bronze Anodized
    • MB – Matte Black Powder Coat
    • WP – White Powder Coat

    OPTIONS
    • EA – Electrical Actuator
    • FL – Fire Label
    • FX – Integral Intumescent
    • PULL – Pull
    • PV – Pivot Doors
    • SF – Security Fasteners
    • MB-EC – Matte Black End Cap
    FEATURESΒ
    • Can be made any size from 12" to 54".
    • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
    • 5 million cycles tested.
    Β
    MATERIALS / SPECIFICATIONS
    • Solid Rubber Extrusion is Black
    • Aluminum is Clear Anodized
    • Screws are standard (#8 x 1-1/2" SMS self-drilling screws) supplied
    • Brass Hex Nut
    • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
    • Self-leveling door seal up to maximum 7/8" drop.
    • Replacement neoprene – Part #4563N and Jacket – Part #4763N
    • Unit supplied standard with 1 pair of end caps – Part #4163EC-AP.

    Downloads:

    Select Length
    Select Option
    From $69.82

    Original: $199.49

    -65%
    Legacy Manufacturing - 7763 - Surface Automatic Door Bottom - 29/32" x 1-15/16" - Matte Black Powder Coat - Optional Lengthβ€”

    $199.49

    $69.82

    Product Information

    Shipping & Returns

    Description

    COMPETITOR EQUIVALENT


    LEGACY NGP PEMKO ZERO
    7763 – – 367AA
      FINISHES
      • CA – Clear Anodized
      • DB – Dark Bronze Anodized
      • MB – Matte Black Powder Coat
      • WP – White Powder Coat

      OPTIONS
      • EA – Electrical Actuator
      • FL – Fire Label
      • FX – Integral Intumescent
      • PULL – Pull
      • PV – Pivot Doors
      • SF – Security Fasteners
      • MB-EC – Matte Black End Cap
      FEATURESΒ
      • Can be made any size from 12" to 54".
      • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
      • 5 million cycles tested.
      Β
      MATERIALS / SPECIFICATIONS
      • Solid Rubber Extrusion is Black
      • Aluminum is Clear Anodized
      • Screws are standard (#8 x 1-1/2" SMS self-drilling screws) supplied
      • Brass Hex Nut
      • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
      • Self-leveling door seal up to maximum 7/8" drop.
      • Replacement neoprene – Part #4563N and Jacket – Part #4763N
      • Unit supplied standard with 1 pair of end caps – Part #4163EC-AP.

      Downloads:
