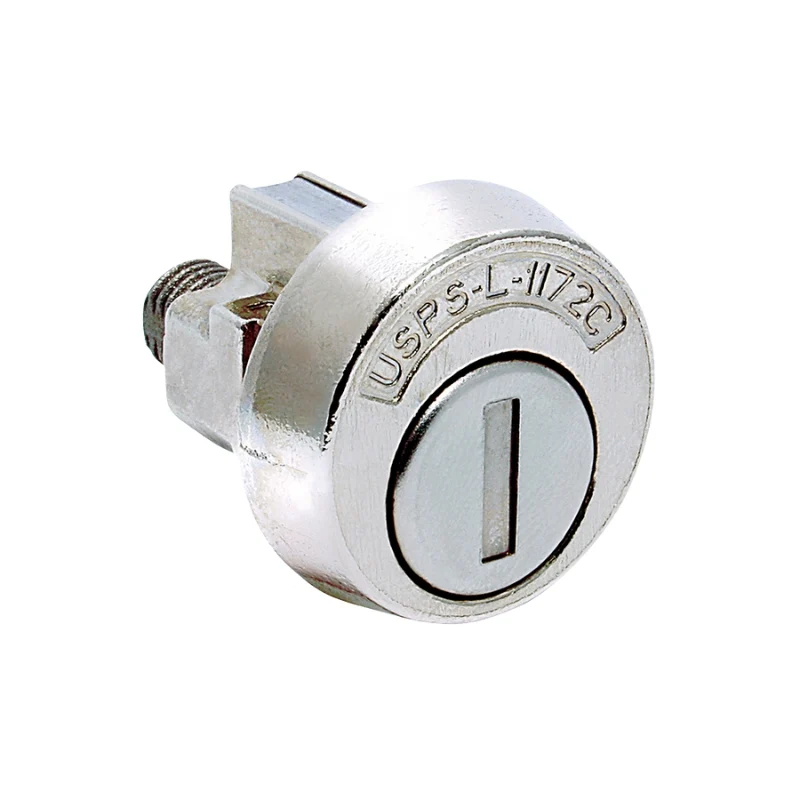

COMPX - C9200 - New Pin Tumbler Mailbox Shutter Counter-Clockwise



The CompX C9200 is a mailbox lock approved by USPS for 4C (CBU) mailboxes. USPS specification “USPS-L-1172C” for USPS-STD-4C mailboxes for exterior pedestal-mounted neighborhood boxes. Keyway dust shutter for lock protection. Clip mounted.

Features:

• Model: COMPX National C9200
• Type: Pin‑tumbler mailbox lock (counter‑clockwise rotation)
• Application:
  • Designed for exterior pedestal‑mounted neighborhood mailboxes
  • Clip‑mounted installation
  • Features a built‑in keyway dust shutter to protect against dust and debris
• Operation:
  • Counter‑clockwise rotation to unlock
  • The key is removable only in the locked position
• Keying:
  • Supplied “keyed differently” from other units (up to 2,000 unique changes available)

Specifications
Pin Tumbler	High‑security 5‑pin mechanism
Cam Thickness	Supports cams up to 3⁄16″ (e.g. C7120)
Resistance	Withstands up to 1,000 lb of applied force
Drain Feature	The cylinder includes bottom drain holes to prevent water accumulation
Finish	Typically bright‑nickel
