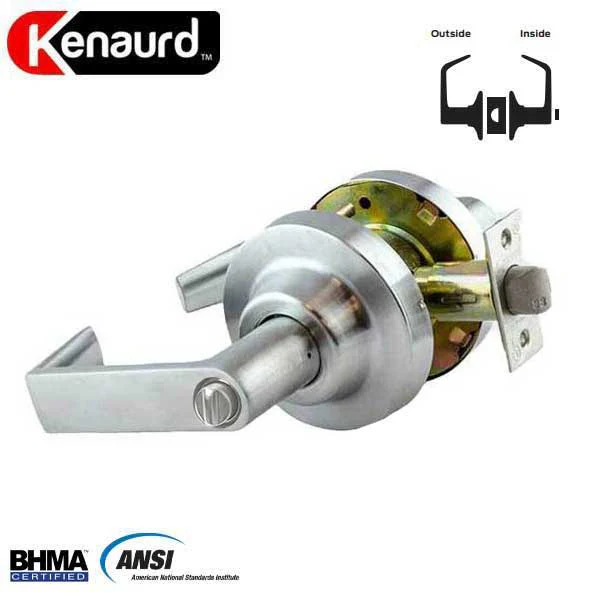

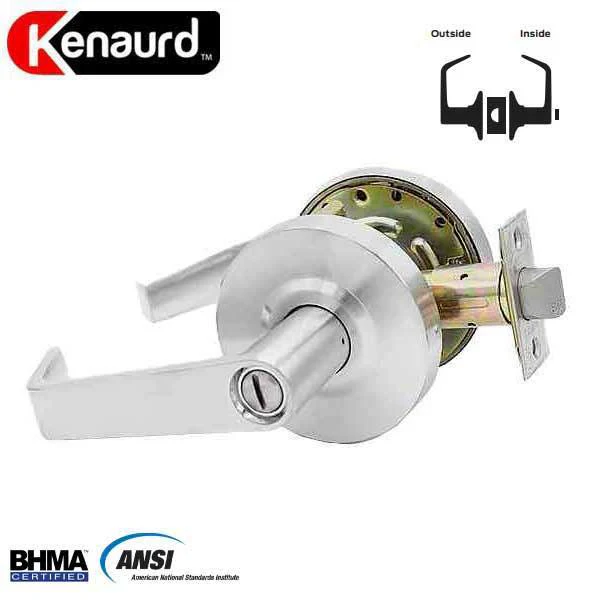

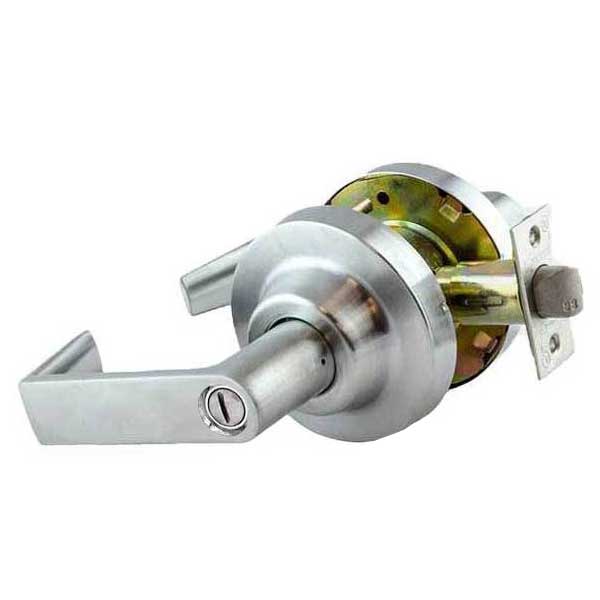

Commercial Lever Set Handle - 2-3/4” Standard Backset - Satin Chrome - Privacy - Grade 1
The Premium Commercial Grade 1 Series is designed for heavy commercial use. It is built for heavy use in commercial applications
Perfect for commercial applications in Office Buildings, Schools, Universities, Hospitals, and much more.
More Information Below
| Lock Function | ANSI F76 Privacy lock |
| Handing | Non-Handed |
| Door Thickness | 1-5/8” to 1-7/8” |
| Cylinder | No Cylinder |
| Backset |
2 3/4" (70 mm) standard, Optional 2 3/8" (60 mm) sold separately HERE |
| Latch |
11-096 Deadlatch 1/2" (13 mm) throw |
| Hsg diameter | 1" (25 mm) |
| Levers | Rigid Lever - Pressure cast zinc |
| Thru Bolts | Removable thru-bolts fit existing preps like Schlage, Best, Yale, Corbin Russwin, Sargent, Arrow, and more |
| Strike | 10-025 1 3⁄16", 1 3⁄8" (30 mm, 35 mm) 1 1 ⁄4"x 47 ⁄8" (32 mm x 124 mm) ANSI |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
Meets or exceeds A156.2 performance requirements for grade 1 cylindrical locks. |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
| Keyed Alike | Up to 10 KA10 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Premium Commercial Grade 1 Series is designed for heavy commercial use. It is built for heavy use in commercial applications
Perfect for commercial applications in Office Buildings, Schools, Universities, Hospitals, and much more.
More Information Below
| Lock Function | ANSI F76 Privacy lock |
| Handing | Non-Handed |
| Door Thickness | 1-5/8” to 1-7/8” |
| Cylinder | No Cylinder |
| Backset |
2 3/4" (70 mm) standard, Optional 2 3/8" (60 mm) sold separately HERE |
| Latch |
11-096 Deadlatch 1/2" (13 mm) throw |
| Hsg diameter | 1" (25 mm) |
| Levers | Rigid Lever - Pressure cast zinc |
| Thru Bolts | Removable thru-bolts fit existing preps like Schlage, Best, Yale, Corbin Russwin, Sargent, Arrow, and more |
| Strike | 10-025 1 3⁄16", 1 3⁄8" (30 mm, 35 mm) 1 1 ⁄4"x 47 ⁄8" (32 mm x 124 mm) ANSI |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
Meets or exceeds A156.2 performance requirements for grade 1 cylindrical locks. |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
| Keyed Alike | Up to 10 KA10 |
