Command Access - V23EU - Electronic Exit Trim - Fail Secure - Storeroom - 24V - 06 Lever - Satin Chrome

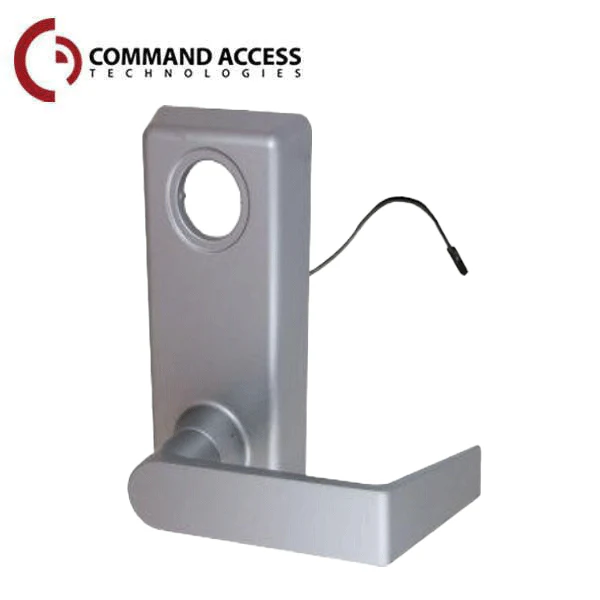

The Command Access Technologies V23EU-06-626 is an electrified exit trim designed for use with Von Duprin 22 exit devices. It is part of a line of electrified door hardware that allows the outside lever to be electronically unlocked, providing control over door access. The Outside lever unlocked (EU) electronically. Switched power allows the outside lever to retract the latch(es). The outside key momentarily unlocks the outside lever to retract the latch(es). Inside pushpad is always free for immediate egress.

Features:

• Fail-Secure Operation ensures that it stays locked during power loss for enhanced security.
• The free egress from the inside allows the inside lever to always exit in emergencies.
• The 24V DC Operation is compatible with most access control power systems
• The remote access control allows remote locking and unlocking through connected systems.
• Retrofit design easily retrofits onto VonDuprin 22 series exit devices without major modifications.
• Field Configurable supports fail-secure configuration based on installation requirements.


Specifications:

Manufacturer	Command Access Technologies
Voltage	24V DC
Current Draw	350-450 mA
Power Type	Continuous Duty
Function	Storeroom
Finish	626 Satin Chrome
Material	Corrosion-resistant metal, suitable for high-traffic environments
Compatibility	Compatible with all standard Von-Duprin 22 series exit devices
Operating Temperature Range	-20°F to 120°F (-29°C to 49°C)
Humidity	Designed for indoor and limited outdoor use, depending on environmental exposure
Certifications/Compliance	UL Listed for fire-rated doors Meets ANSI/BHMA standards for grade 1 hardware, ensuring the highest level of performance for commercial applications
Remote Access	Can be integrated into access control systems for centralized management and monitoring
Warranty	3- year Manufacturer's warranty



Downloads:

• Cutsheet
• Installation Instructions
