Command Access - Request-to-Exit Switch - Von Duprin 33/35/98/99 Series Exit Device - SPDT
Field Installable Request-to-Exit switch for Von Duprin 33/35/98/99 Series Exit Device. The kits easy drop-in installation adds a switch that sends a signal to alert the control panel that the door is about to be opened by someone exiting from within the secured area. The switch is SPDT (single pull, double throw)

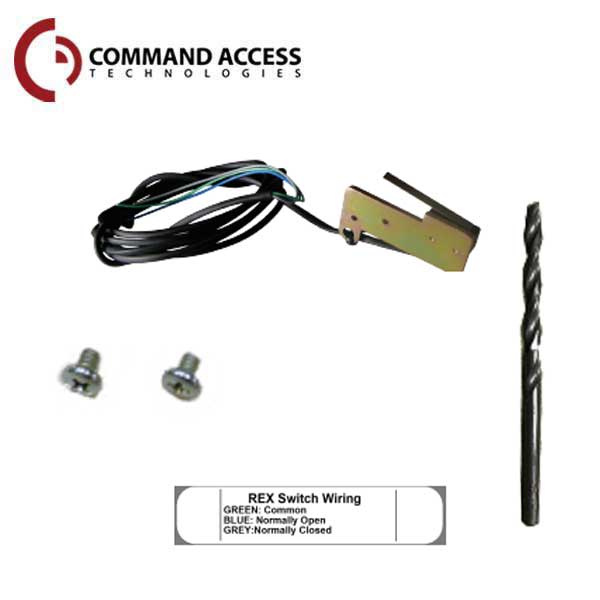

Includes:
- REX Label
- REX Switch
- 2 - Phillips Screws
- 9/64 drill bit
Specifications:
| Function: | Request-to-Exit REX Switch. SPDT |
| Series: | 33/35/98/99 Series |
| Lock Type: | Exit Device |
| Type: | Single Pull Double Throw SPDT |
| Rating: | .5A or 24VAC / VDC |
| Configuration: | Green - Common (C) Blue - Normally Open (NO) Gray - Normally Closed (NC) |
| Warranty: | 3 Year Manufacturer's Warranty |
Downloads:
