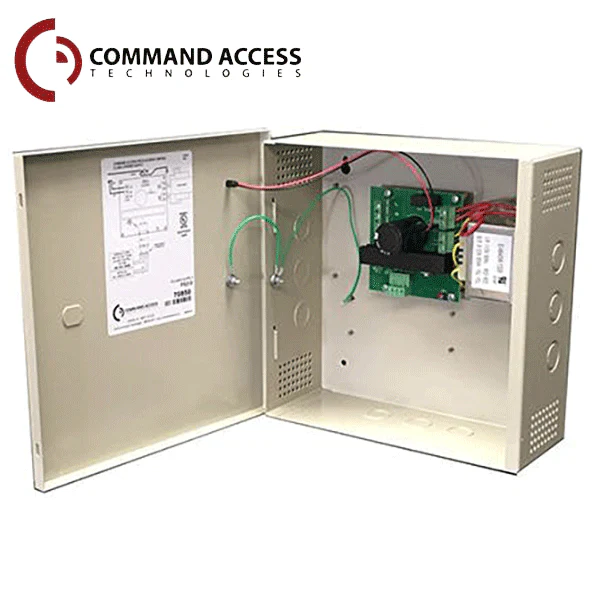

Command Access - PS210 - Power Supply - 1.5 Amp - 24VDC
The PS210 power supply inputs 110-120VAC and deliver (1.5) amps @ 24VDC to (1) PTC fused output. It also provides (1) solid-state input trigger, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid and motor-driven exit devices, electric locks, electric strikes, and mag locks.
Features:
- Built to run up to 2 locks, exit trim & lP motor/solenoid kits
- Robust solid-state outputs - Protects system relays
- Rock-solid board design improves reliability
- Built to last in the USA
- Linear design ensures ample inrush/ hold current for latch retraction
- Door mounted LED Power Indicator
- Easy to remove euro connectors
Specifications:
| Input Voltage: | 120 VAC, 60 Hz, • Input Fuse: 1.5 Amp Fuse @ 250VAC |
| Output Voltage: | 1.5A @ 24VDC • 1 Solid State I/O’s - 1.5A auto-resetting fused outputs • Over-voltage protection • Output Voltage trim pot |
| Fire Alarm: | Fire alarm link |
| Electrical: | Temperature range: 0 to 49° C; 32 to 120° F • Maximum humidity: 85% |
| LED’s: | Red = A/C Power indicator • Green = D/C Output indicator |
| Dimensions | 11” W x 11” H x 4” D |
| knockouts | 1/2” & 3/4” |
| Hinge-less removable cover | Cam lock not provided |
| Operating Voltage: | 22-30 VDC |
| Rated Power | Class 2 Rated power limited output |
| Warranty: | 3-Year Manufacturer Warranty |
