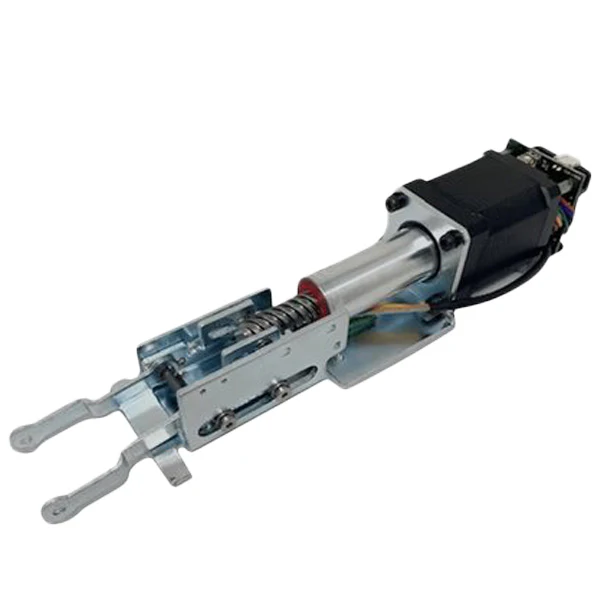

Command Access - Field Installable Motorized Latch Retraction Kit - For Cal-Royal Series 9800 & 2200 Exit Devices - 2/18 Gauge - 24 to 28 VDC

The MLRK1-CAL is a practical and cost-effective way to convert a mechanical Cal Royal 9800 & 2200 series exit device to an electrified latch retraction device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches.

Features:

• MM4S Smart Module: On-Board diagnostics with audible feedback for adjustment and power issues
• Remote MM4S module for easy accessibility and servicing
• "PTS". 5-second electronic adjustment for easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low current draw-field switchable to  "High torque" mode
• Up to 300' wire run with 2-18ga wire - Long wire runs provide the installer with the convenience of placing the command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• 8' cable with quick connect for MM4S module to easily connect to power supply lead
• Request-to-exit kit available
• 3-year "no-hassle" manufacturer warranty

Manufacturer Parent	Command Access
For Use with	Cal Royal 9800 and 2200 Series Exit Device
Function	Latch9 Retraction Kit
ADA Compliant	No
Function Family	Part/Component
Standards	UL Listed
Voltage	24 to 28 VDC
Product Type	Electronic Part/ Accessory
Wire Gauge	18 ga
Product Length	300'
Warranty	3-year no-hassle warranty
Protection	Unit Shutdown when voltage exceeds 28VDC
Standard Torque	Average Current Peak: 900A, Average Current Hold 215mA
High Torque	Average Current Peak: 2A, Average Current Hold: 250mA
PTS adjustment	approx. 1/4"
Wire Run	300' with 18ga wire
Device Cutdown Details	All the way to the push-pad
