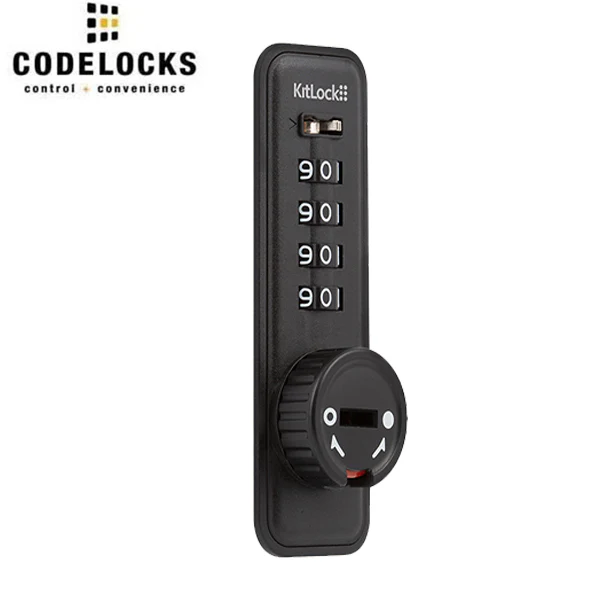

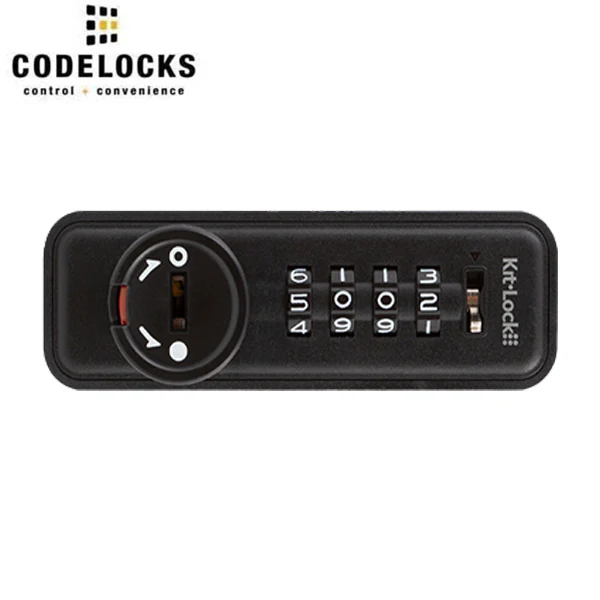

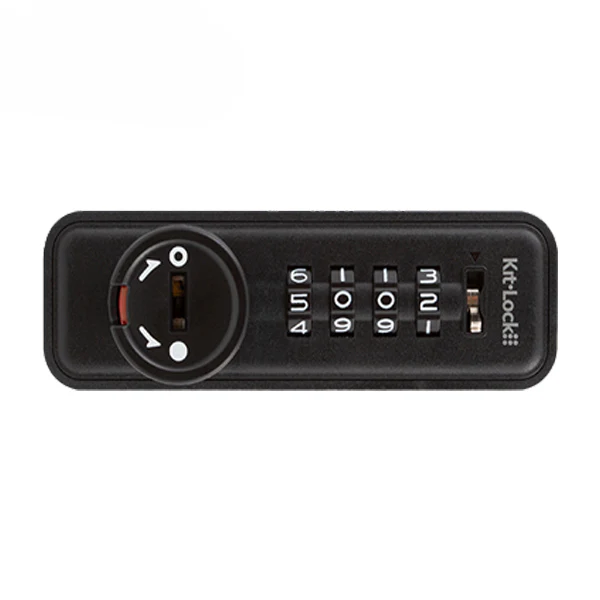

CodeLocks - KL15 - Mechanical Combination Lock - Kit Lock - Optional function - Optional Handing - Black

CDL-KL15

Simple, tough and good value for money, the KL15 offers mechanical keyless access with Public or Private Function models suitable for a variety of locker and cabinet applications.

The KL15 can be surface mounted with an ergonomically designed surface trim plate that provides additional grip allowing ease of opening. If it’s a sleek look that will better suit the application, the KL15 can also be flush fitted.

Public Function

The KL15 Public Function is ideal for short term, multiple occupancy applications. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock, the lock remains open ready for the next user.

Private Function

The KL15 Private Function is ideal for use where the same, personal 4 digit code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.

Code Retrieval: This function requires the Master Key (sold separately). Allows a code to be retrieved should it be forgotten or emergency access is required.

Features:

• No keys to manage
• Code retrieval function
• Flush or surface mounted
• Anti-vandal handle
• Salt spray tested
• High / low temperature tested
• High / low humidity tested
• 4 wheel combination
• Up to 10,000 unique combinations
• Locked / unlocked indicators
• Public and Private Function
• Suitable for internal and external applications



Specifications:

Brand	KitLock by Codelocks
Code Change Method	Keypad (On Door)
Door Prep	3 1⁄4" x 3⁄4" (83mm x 20mm)
Finish	Black
Fixings	Back plate(s) and cam supplied - Additional back plate and cam available
Codes	Single code storage - up to 10,000 code combinations
Function	Private, Public
Indicators	Locked (red) / unlocked (green)
Latch Type	Cam
Material	Plastic
Surface Mount	Fixed spindle suitable for panel thickness - 1⁄32" - 11⁄16" (0.8mm - 18mm)
Orientation	Vertical, Left Handed, Right Handed
Suitable For	Internal, External
User Levels	User
User Types	Code





Downloads:

• Brochure
• Installation Instructions
• Data Sheet
