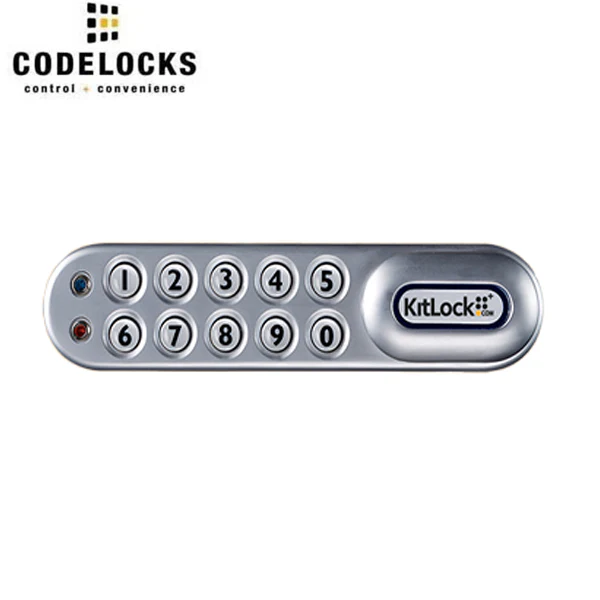

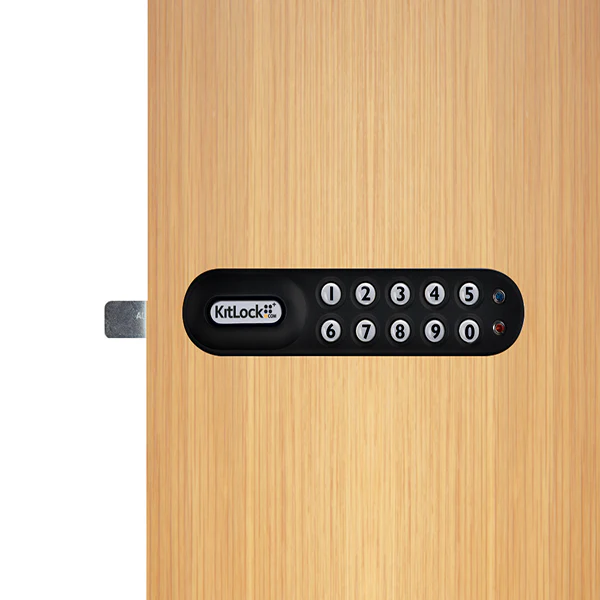

CodeLocks - KL1007 - Classic Electronic Kit Lock - Up to 1" Door Thickness - Locker Lock - No Pre-Assembly - Optional Handing - Optional Finish

CDL-KL1007

This neat lock is easy to fit, taking just a few minutes to remove the existing cam lock and making an additional top fixing. KL1000 Classic can also be fitted to a locker or cabinet that does not have an existing locking device - just drill another hole. Once in place the lock will perform up to 15,000 openings on just two AAA batteries. Access control without the need for keys. Features Private and Public functions.

Custom Packed with 1 1/8” Spindle to fit 1” Thick Material.

Features:

• Easy fit
• Up to 1" Door Thickness
• 11 individual round buttons
• 15,000 openings from 2 x AAA cells (supplied)
• Battery override
• Ideal for cabinets, lockers, cupboards, medical carts, data racks, safes
• Left, right and vertical versions
• RAL colour locks available on request, minimum order quantities apply
• IP55 rated when used with the rubber door gasket - separate part
• Not suitable for a Chlorine environment
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

 Private Function

This is the most common function and used where the same code will be repeatedly used, e.g. a pupil in a school or an employee with the same locker in the workplace.

Public Function

In this function the KitLock operates with a single User Code. The user enters their own personal four-digit code. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next new user. This function is used for short term, multi occupancy applications, e.g. a locker in a leisure center.

Specifications:

Brand	KitLock by Codelocks
Battery Override	A 9 volt PP3 battery can be placed against external contacts
Code Change Method	Keypad (On Door)
Buttons	2 x 5 + Programming
Door Thickness	Ready to fit doors up to 1"
Finish	Silver, Black
Functions	Private, Public
Keypad	11 individual round buttons
Lock Dimensions	5 3⁄8" (136mm) x 11⁄16" (28mm) x 15⁄16" (33mm)
Low Battery	Red LED will flash on opening to indicate low battery
Latch Type	Cam
Memory	Non-volatile memory will be retained
Operations	Up to 15,000 opening per 2 x 1.5 AAA batteries
Power	2x AAA
Orientation	Vertical, Left Handed, Right Handed
Suitable For	Internal, External
User Levels	Master, Sub Master, Technician, Standard User
User Types	Code





Downloads:

• Brochure
• Installation Instructions
