CodeLocks - CL510 - Mechanical Lock - Heavy Duty - Optional Backset - Tubular Latch Bolt - Stainless Steel

CDL-CL510-SS

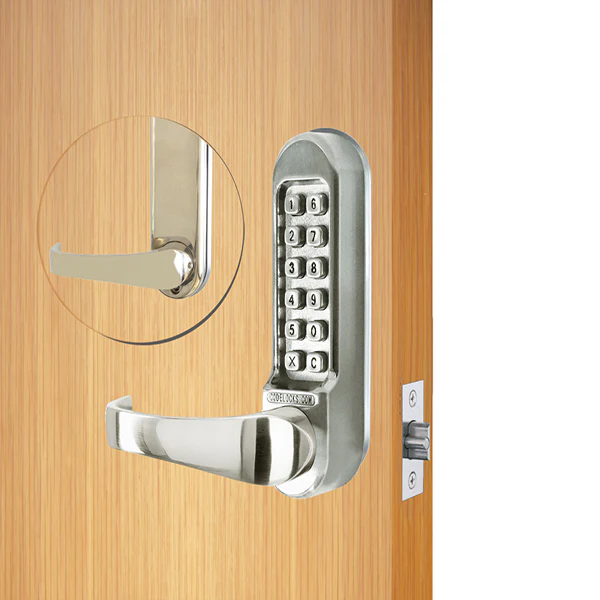

The CL510 is a heavy-duty push-button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed.

Features:

• Large full-size lever handles with a return to the door
• Suitable for interior and exterior use
• Heavy Duty deadlocking tubular latch. Latch retracts by turning the inside handle freely, or the outside handle after code input.
• Butterfly spindle not required.
• Tumbler alignment for easy code change
• Large three coil lever return spring suitable for high traffic use
• Selected models available in stainless steel or polished brass finish
• Neoprene seals included

Brand	Code Locks
Buttons	2 x 6
Code Change Method	Tumblers (Off door)
Codes	2,047 non-sequential code combinations available
Material	Zinc Alloy
Handed	Non-handed
Keypad	12 Stainless Steel Buttons
Latch Type	2 3/4" or 2 3/8" Tubular Latch Bolt
Lock Dimensions	177mm (7") x 48mm (1 ⅞)
Orientation	Vertical
Spindle	Two-part 8mm (5⁄16) spring-loaded spindle
Manufacturer Warranty	Limited Lifetime Warranty





Downloads:

• Data Sheet
• Installation Instructions
