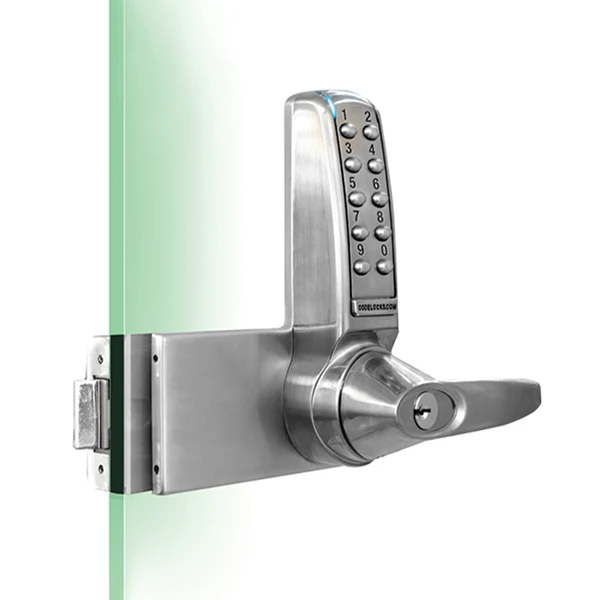

CodeLocks - CL4000 - Electronic Glass Door Lock - Non-Handed - Field Reversible - Brushed Steel

CDL-CL4000

The CL4000GD is a medium-duty electronic patch door lock. The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes, the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free mode can also be programmed at the keypad using the Master Code.

Features

• Glass Doors
• Mortise Latch
• Fits existing 'Rondo' type glass door prep
• Over 140,000 operations from 4 x 'N' cells (supplied)
• Tamper time out and low battery warning
• Lever handle supplied as Non-Handed
• Suitable for in-swinging doors only
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

Specifications

Brand	Codelocks
Buttons	2 x 5 + Programming
Code Change Method	Keypad (On Door)
Codes	User Codes 4, 5 or 6 digits long
Door Thickness	5⁄16" - 10⁄16" (8mm - 15mm)
Finish	Brushed Steel
Handed	Lever handle supplied as Non-Handed for inswing doors only
Keypad	10 Individual stainless steel buttons
Lock Material	Zinc Alloy
Low Battery Warning	Red LED will flash on opening to indicate low battery
Memory	Stores up to 80 User Codes
Operations	Up to 140,000 per set of 4 x ‘N’ cells
Power	4x N
Orientation	Vertical
Spindle	5⁄16" (8mm) square spindle
Suitable For	Internal, External
User Types	Code



 Installation Video:



Downloads:

• Data Sheet
• Installation Instructions
