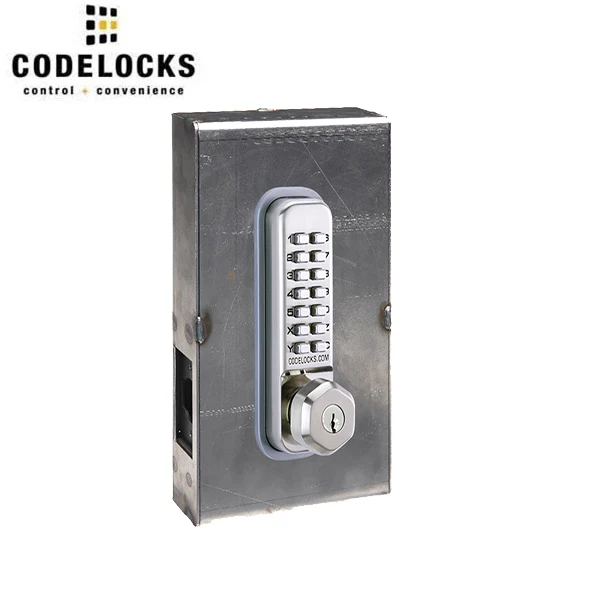

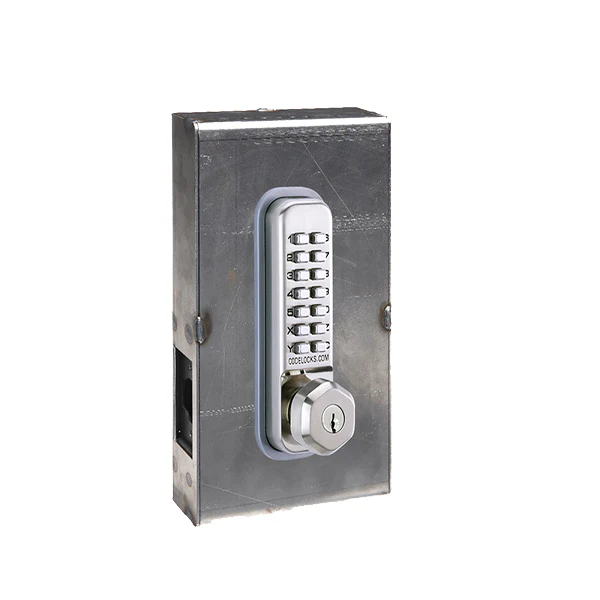

CodeLocks - CL250 Gate Box Kit - Mechanical Lock - Light Duty - Dual Backset Deadlatch 2 3/4" - 2 3/8" - Mortise Tubular Latchbolt Gate Box Kit - Key Override - Fire Rated - Grade 2
The CL250 latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features
- Mechanical Codelock
- Key Override: Allow Locks to be overridden via a key.
- Light duty mortise latch with dual backplate
- Hexagonal bevelled handle and lock case
- Available in stainless steel
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Complete kit with all required components
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Easy, effective gate and fence installation
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

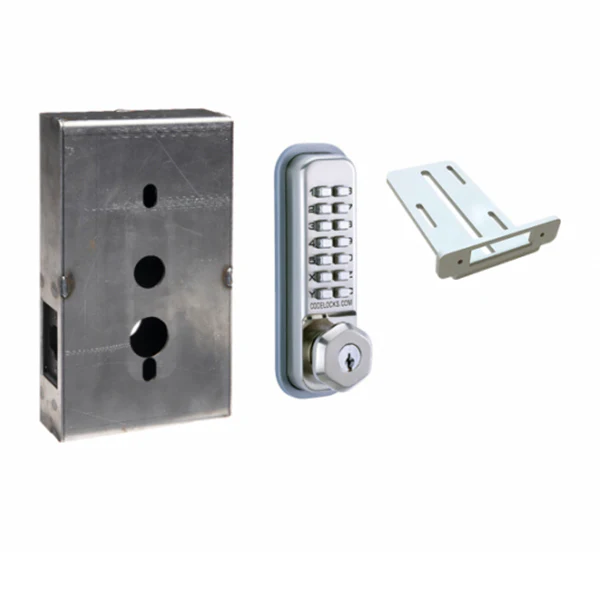

Gate Box Kit Components
- CL250 Tubular Deadbolt with Key Override
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Specifications
| Brand | Codelocks |
| Gate Box Dimensions | 9.5ā (H) x 5.5ā (W) x 1.75ā (D) |
| Gate Box Material | 14-gauge steel |
| Buttons | 2 x 7 |
| Code Change Method | Keypad (On Door) |
| Codes | 8,191 non sequential code combinations available |
| Code Storage | Single Code |
| Door Thickness | 1 3ā8" - 2 3ā8" (35mm - 60mm) |
| Finish | Stainless Steel |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 14 Individual stainless steel buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Flat spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
Dual Backset Deadlatch
