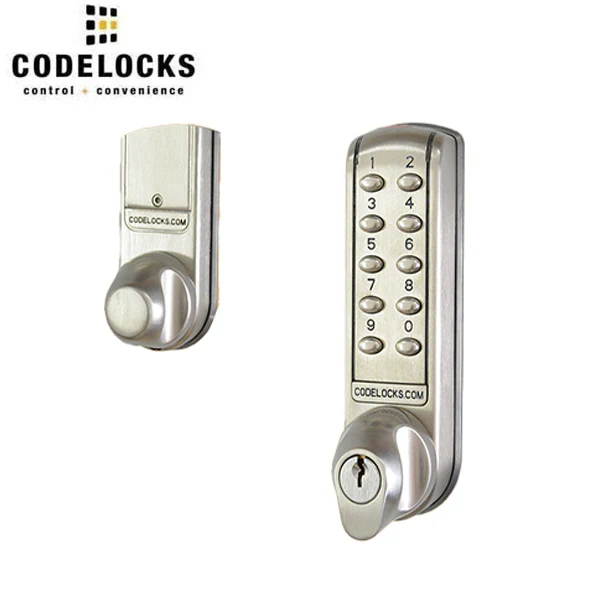

CodeLocks - CL2210 - Electronic Door Lock - Dual Backset Latch 2 3/8" - 2 3/4" - Electronic Mortise Deadbolt - Brushed Steel

CDL-CL2210

The CL2210 is a medium duty electronic lock. The outside knob turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights burn, the knob will retract the latchbolt. The key will open the door for management functions. Code Free Mode can be programmed at the keypad using the Master Code.

Features

• Mortise deadbolt
• Rapid retrofit for basic single code mechanical locks
• On door programming via Master Code in seconds
• Allows up to 80 User Codes
• Allows up to 10 One-Time User Codes
• Over 80,000 operations from 2 x AA cells (supplied)
• Non handed
• PVD low maintence finish
• Key override as standard

Specifications

Brand	Codelocks
Buttons	2 x 5 + Programming
Code Change Method	Keypad (On Door)
Codes	Allows up to 10 one time User Codes 4, 5 or 6 digits long
Door Thickness	1 3⁄8" - 2 3⁄8" (35mm - 60mm)
Finish	Brushed Steel
Handed	Non-Handed - Locks will fit doors hung on the left or right
Keypad	10 Individual stainless steel buttons
Latch Type	Mortise Latchbolt
Lock Material	Zinc Alloy
Low Battery Warning	Red LED will flash on opening to indicate low battery
Memory	Stores up to 80 User Codes
Operations	Up to 80,000 operations per 2 x 1.5v AA batteries
Orientation	Vertical
Power	2x AA
Spindle	Flat bar spindle, 5⁄16" (8mm) adaptor supplied
Suitable For	Internal, External
User Types	Code



 Dual Backset Latch 2 3/8" - 2 3/4"

Downloads:

• Data Sheet
• Installation Instructions
