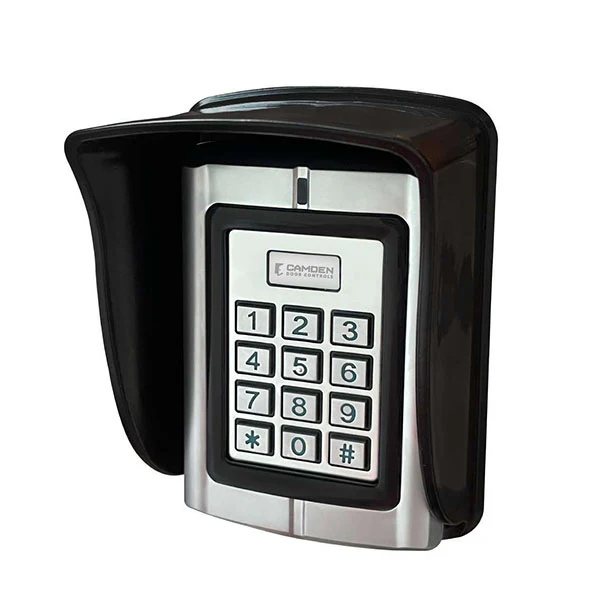

Camden CM-550SK - Surface Mount Keypad - 1000 Users - Vandal & Weather Resistant IP68 - 12 VDC +/- 10%
Camden surface mount keypads are rugged, weather and vandal resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, ‘Request to Exit’ inputs, tamper alarm and support up to 2,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors or other electrical device.
- Up to 2,000 users
- Backlit vandal resistant keypad
- All metal construction for wall or jamb mounting
- Weather resistant IP rated
- Adjustable door delay time
- Adjustable door open time
- Tamper alarm output
- Request to Exit device input
- Blue backlighting for night time use
- 3 year warranty
Specifications:
| Voltage: |
CM-550SK: 12 VDC +/- 10% |
| Protection: | CM-550SK: IP65 |
| Current Draw: | CM-550SK: 50 mA |
| Contact Type: | CM-550SK: (2) Form 'C' |
| Contact Rating: | CM-550SK: 2 A @ 30 VDC |
| Wiegand Interface: | CM-550SK: NA |
| Time Delay: | 0 – 99 seconds |
| Alarm Time: | 0 – 3 minutes |
| Temp Range: |
CM-550SK: -49°F/+113°F (-45°C/+55°C) |
| Dimensions: |
CM-550SK: 4-13/16"H x 3-1/8"W x 1-1/16"D (121.67mm x 79.5mm x 26.42mm) |
