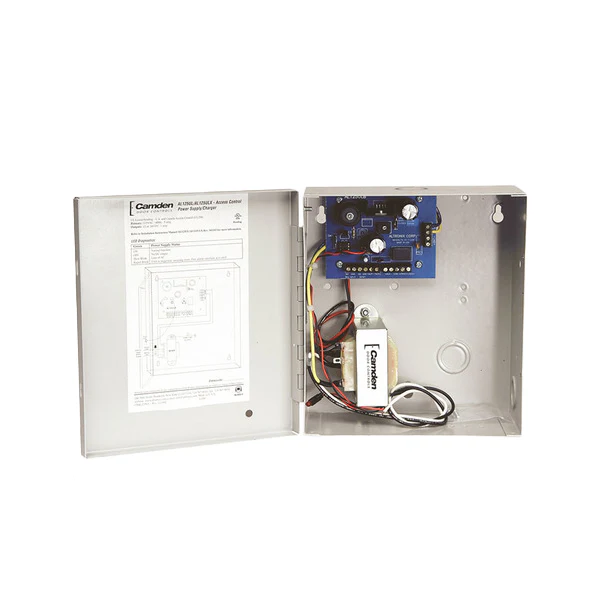

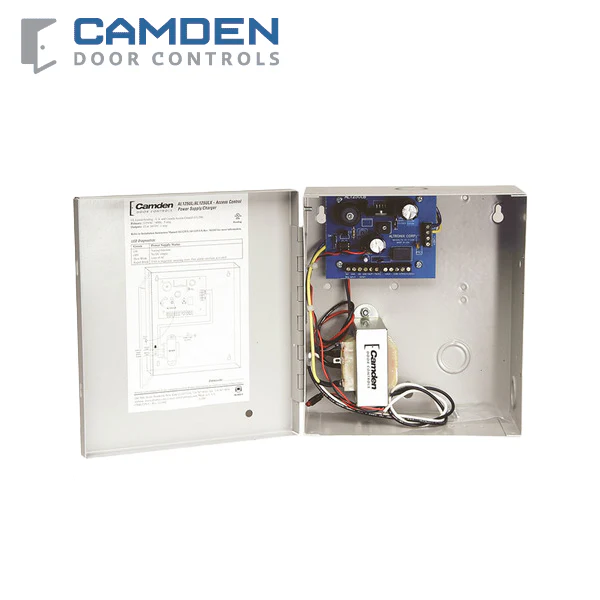

Camden CX-PS150UL - Commercial - Power Supply W/ Cabinet - 12/24V Selectable - 1 Amp Output
The Camden's CX-PS150UL is a power supply /charger that supplies a total of 1.7 amps nominal continuous supply at nominal 12/24VDC. There are 2 outputs for Magnetic Lock or Electric Strike each with over current protected by 2.5 amp P.T.C. The CX-PS150UL can accommodate 1 - 4Ah battery. UL listed with UL294 Edition 7th. ULC-S533.
- Input : 60Hz 1.8A max,120VAC for CX-PS150
- Output 1 Amp continuous supply current at Nominal 12/24VDC controlled output for Maglock and Electric Strike.
Auxiliary Output 200mA at 12/24VDC for Access Device. - Built in Battery Charger of 500 mA for sealed lead acid or gel cell batteries.
- Battery reversal protection.
- Automatic switch over to stand-by battery upon AC failure.
- LEDs display on enclosure door (LED Green for AC ,Led Blue for DC).
- Enclosure dimension CX-PS150 8” x 9” x 3.5” (204mm x 231 x 89mm)
Specifications:
| Voltage: | 12/24 VDC OUTPUT |
| Input: | 60Hz 1.8A max,120VAC |
| Output: | 1 Amp continuous supply current at Nominal 12/24VDC controlled output for Maglock and Electric Strike. Auxiliary Output 200mA at 12/24VDC for Access Device |
| Battery Charger | (500 MA) Battery reversal protection |
| Enclosure Accommodates: | The CX-PS150UL can accommodate 1 - 4Ah battery |
| Enclosure Dimensions: | 8” x 9” x 3.5” (204mm x 231 x 89mm) |
Downloads:
