Camden CX-PS10UL - Commercial - Power Supply W/ Cabinet - 12/24V Selectable - 1 Amp Output

CMD-CX-PS10UL

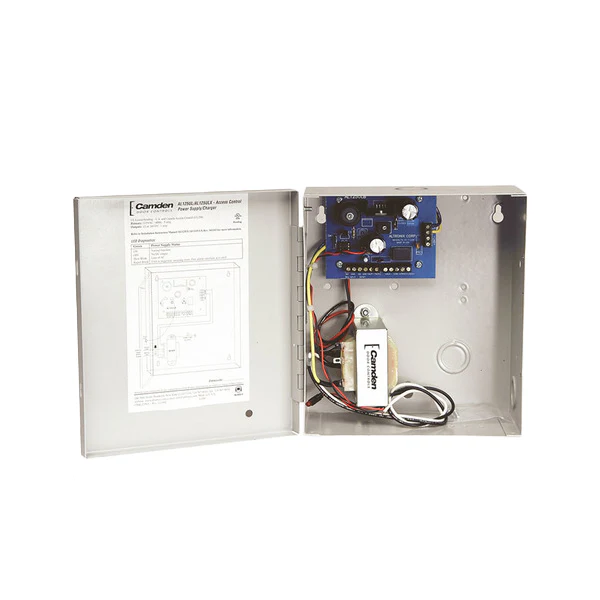

The Camden's CX-PS10UL is a 1 amp power supply that is ideal for powering magnetic locks and electric strikes. UL and NFPA listed, this model meets all fire and life safety codes for access control and locking devices. Camden Door Controls CX-PS Series power supplies are ideal for security alarm systems, access control systems, fire alarm systems, door controls, electromagnetic locks and many other applications.

• UL 294, NFPA101 and MEA listed
• Metal enclosure accommodates batteries
• Latching fire alarm tie-in with reset
• 12 or 24V DC selectable 1 amp output
• AC power and status indicators
• Short circuit and terminal protection
• 115V AC power input
• 3 year manufacturer warranty

Specifications:

Voltage:	12/24 VDC OUTPUT
Input:	115 VAC
Output:	1 AMP
Battery Charger	(400 MA)
Enclosure Accommodates:	ONE 12V DC/7 AH BATTERY OR TWO 12V DC/4 AH BATTERIES
Enclosure Dimensions:	8 1/2”H x 7 1/2”W x 3 1/2”D (216mm x 190mm x 89mm)

Downloads:

• Spec Sheet
