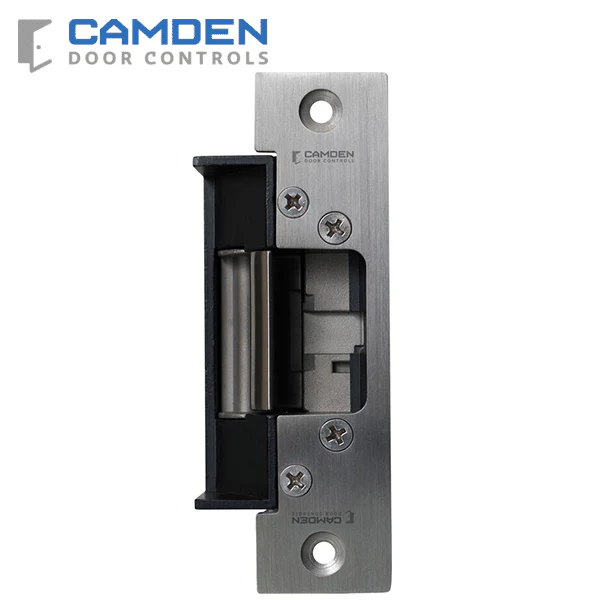

Camden - CX-ED1410 - Universal ANSI Fire Electric Strike - Fail Safe / Secure - Non-Handed - 12/24V AC/DC - Grade 1

Camden CX-ED1410 Grade 1 ANSI fire rated strike for cylindrical locksets offer the very best strike quality and performance, with a stainless steel faceplate provided. The 'ANSI' fire strike design delivers unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation.

Note: Fire rating applicable only while in fail secure mode.



• Centerline latch entry for cylindrical locksets, with ANSI square faceplate
• UL/ULC 90 minute fire rated, UL 1034 Burglary listed
• 5/8" to 3/4" latch projection (throw)
• Selectable 12/24V AC/DC
• Selectable fail safe/fail secure. Fire rating voided in fail safe mode
• Continuous duty operation
• Non-handed
• 5 year warranty

Specifications

Voltage:	12/24V AC/DC
Current Draw:	260 mA @ 12 VDC 150 mA @ 24 VDC
Static Strength:	1,500 Lbs.
Dynamic Strength:	70 Ft-Lbs.
Endurance:	1,000,000 cycles (Factory Tested) 250,000 cycles (UL Verified)
Mode:	Selectable - Fail Safe; Fail Secure
Operation:	AC - Buzz DC- Silent
Duty:	Continuous
Latch Monitor:	No
Dimensions:	CX-ED1410: 3-3/8"H x 1-7/8"W x 1-3/8"D (86mm x 47mm x 35mm)
