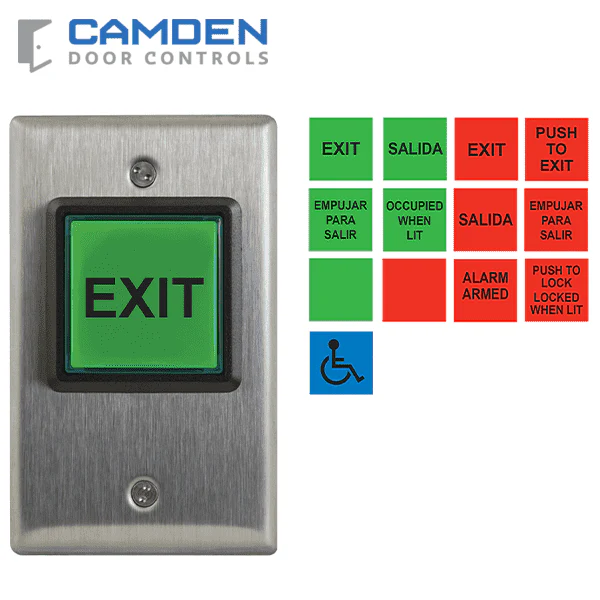

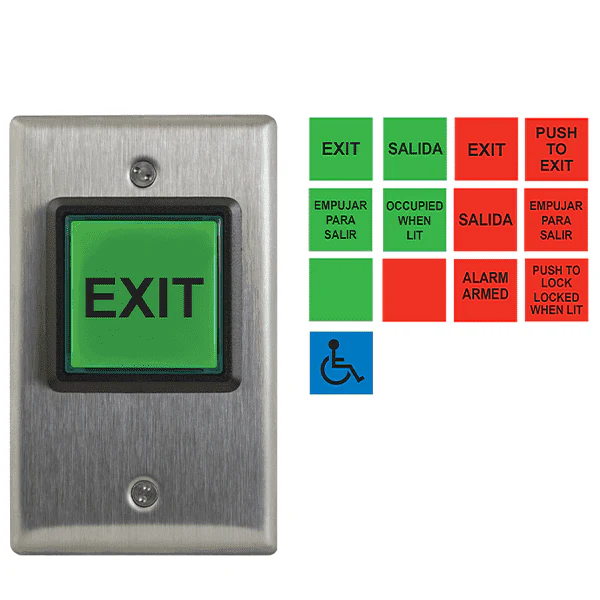

Camden CM-30U - Push/Exit Square Switch - LED Illuminated - w/ English & Spanish Insert Labels -12V-28V

M-30 Series UL compliant LED illuminated 'request to exit' (REX) switches conform to NFPA code requirements and are ADA compliant. They are designed to control electric locks, electromagnetic locks, electric strikes and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications.

Where an electronic time delay is required (i.e, door held open), Camden offers the model CM-30EE with double break circuitry.

• High visibility 2" square button
• Single-gang stainless steel faceplate

• LED bulb provides super-bright operation and longevity (10-year estimate)
• 3-year warranty with '2 for 1' replacement

Specifications

Voltage:	12/24 VDC
Contact Type:	SPDT Form 'C'
Contact Rating:	10 A @ 30 VDC
Switch Type:	Momentary
Current Draw:	LED Bulb: 14 mA
Dimensions:	4-1/2"x 2-3/4" x 1-7/8"” (114.mm x 70mm x 48mm)
Std. Finish:	US32/C32D

Spec Sheets

• Spec Sheet

Reference Guides

• Push Button Switch_Cross Reference

Manuals

• User Manual

• Wiring Diagram
