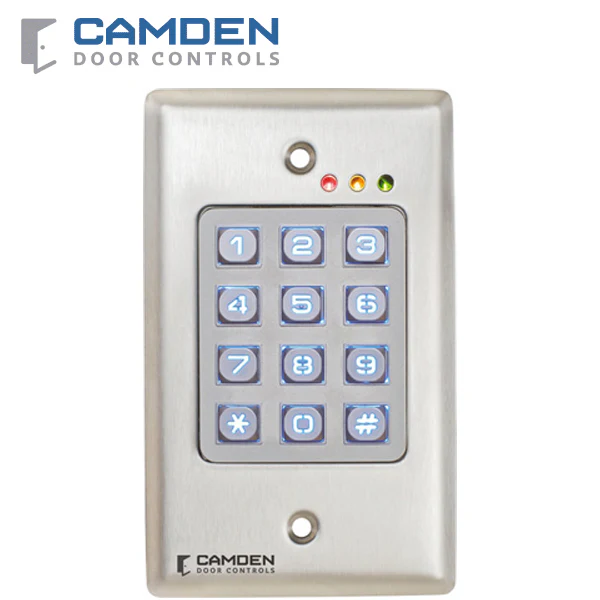

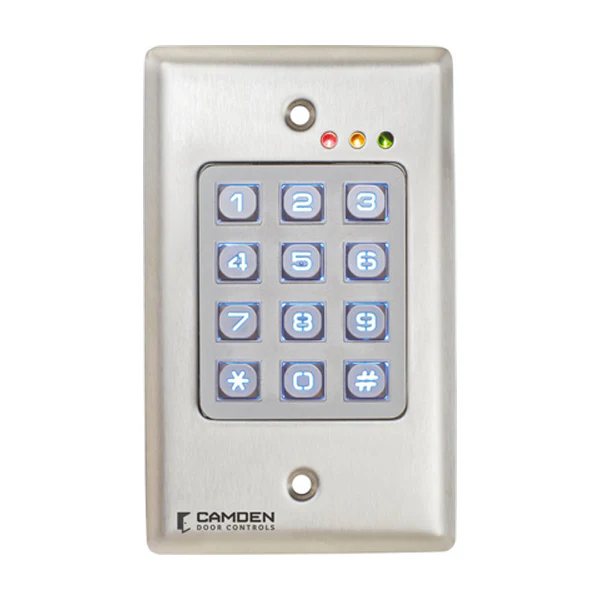

Camden CM-120-TX - Flush Mount Outdoor Vandal and Weather Resistant Keypad - 999 Users - Battery Operated Wireless
CMD-CM-120-TX
CM-120 Series keypads are North American built and provide Tri-Brid stand alone, Wiegand and optional wireless operation! CM120i offers the best performance and value for indoor applications. CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad.
CM-120 Series hardwired keypads have added wireless functions by plugging in a CM-TX99 wireless transmitter module.
CM-120TX keypads are fully wireless with battery power. A CM-RX 91/92 Series receiver is required, sold separately HERE
Lithium batteries recommended for CM-120TX for environments below 0°C (32°F).
- CM-120i keypad for indoor use, features stainless steel faceplate and polycarbonate keys
- CM-120wV2 features backlit, weatherproof & vandal resistant metal keypad
- Flush mount single gang stainless steel faceplate
- 3 LED's + Piezo Buzzer
- Request-to-Exit Input
- Door contact input for anti-tailgating & door open alarm
- Global lock-out feature
- Includes tamperproof screws & driver
- Option for plug-in TX-99 wireless transmitter, 2 channel
Specifications:
| Voltage: | 12/24V AC/DC |
| Mounting: | Single gang, flush (2) #6 machine and tamper proof screws |
| Current Draw: | 30 mA Standby, 90 mA Max |
| Input: | 1 x Rex Input / 1 x Door Contact Input |
| Contact Type: | 2 x Form 'C' |
| Contact Rating: | 3 AMPS @ 24 VDC |
| Capacity: | 999 User Codes |
| Length: | Variable, Up to 8 Digits (10 Million Possible Codes) |
| Response Time: | 0.3 Seconds |
| Time Delay: | 1 to 255 Seconds, or Latched |
| Temp Range: | -40°F to + 122°F (-40°C to +50°C) |
| Dimensions: | 4-1/2" x 2-3/4" x 3/4" (114mm x 70mm x 19mm) |
| RF Output: | Optional Plug-In Transmitter, 2 Channel |
Spec Sheets
- CM-120_Spec Sheet_R2 pdf 0.55 DOWNLOAD
- CM-120 Series_Sales Sheet pdf 2.29 DOWNLOAD
- CM-120_Product Comparison pdf 0.17 DOWNLOAD
- CM-120_Manual_R4 pdf 1.11 DOWNLOAD
- CM-120 Series Keypads_Programming Guide_R3 pdf 0.61 DOWNLOAD
- CM-120 Series Keypads_Programming Guide_French_R3 pdf 0.76 DOWNLOAD
- CM-120_Presentation pdf 0.93 DOWNLOAD
