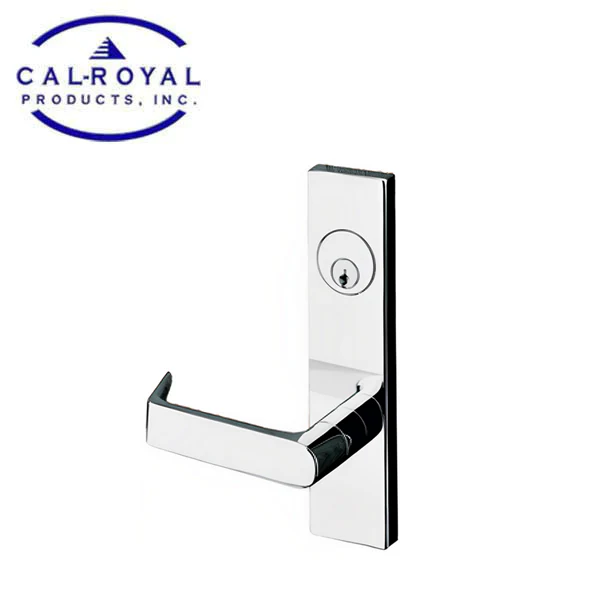

Cal-Royal - NM8466SE - NM Series Mortise Lock - Heavy Duty - Storeroom Function - SE Escutcheon - 2 3/4" Backset - Polished Chrome - Fired Rated - Grade 1

Features:

• BHMA Certified Lifetime Warranty
• Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty
• UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
• Rust-proof heavy duty 2 ¾" backset lock case
• Individual spring to prevent lever sag, easily reversible
• Forged brass lever handles exceed requirements of ADA (American Disability Act)
• Auxiliary latch bolt
• Armored front plate conceals lock mounting screws
• 1" throw heavy duty deadbolt with anti-saw hardened pins
• Heavy duty ¾" latch bolt with anti-friction latch, easily reversible

Specifications:

Function:	Storeroom
Door Thickness:	1-3/4"
Handing:	Left or Right
Backset:	2-3/4" (70mm)
Strike:	Brass, non-handed curved strike 4-7/8" x 1 1/4"
Deadbolt:	1" throw, brass, chrome plated with hardened steel rollers
Latch Bolt:	Brass, chrome plated with heavy-duty deadbolt
Trims:	SE Escutcheon
Finishes:	Polished Chrome
Fire Rated:	3-hour fire door
Certifications:	Meets ANSI/BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles
