Cal-Royal - NM8080 - NM Series Mortise Lock - Heavy Duty - Storeroom Function - SE Escutcheon - 2 3/4" Backset - Satin Chrome - Fired Rated - Grade 1

Features:

• For Doors - 1-3/4" thick

• Backset - 2-3/4"

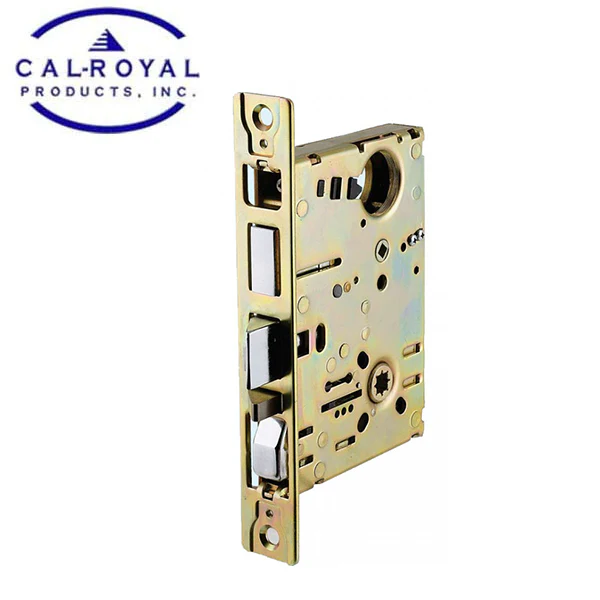

• Lockcase - Heavy gauge zinc chromate steel
• Armored Front - Wrought brass attached by machine screws to lockcase front
• Handing - Handed. Easily field-reversible
• UL Listing - UL Listed “A” Label (3 hours), for use on fire doors, single or pair of doors. “F” mark stamped on strike

• ANSI/BHMA - Meets ANSI/BHMA A156.13, Series 1000, Operational & Security
• Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles.

Specifications:

Function:	F07 - Storeroom
Door Thickness:	1-3/4” (44.5mm) standard
Handing:	Field Reversible
Backset:	2-3/4" (70mm)
Strike:	Brass, non-handed curved strike 4-7/8" x 1 1/4"
Lock Case:	Heavy gauge zinc chromate steel
Deadbolt:	1" throw, brass, chrome plated with hardened steel rollers
Latch Bolt:	Brass, chrome plated with heavy-duty deadbolt
Trims:	SE Escutcheon
Finishes:	26D Satin Chrome
Fire Rated:	3-hour fire door
Certifications:	Meets ANSI/BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceed 1,000,000 cycles
