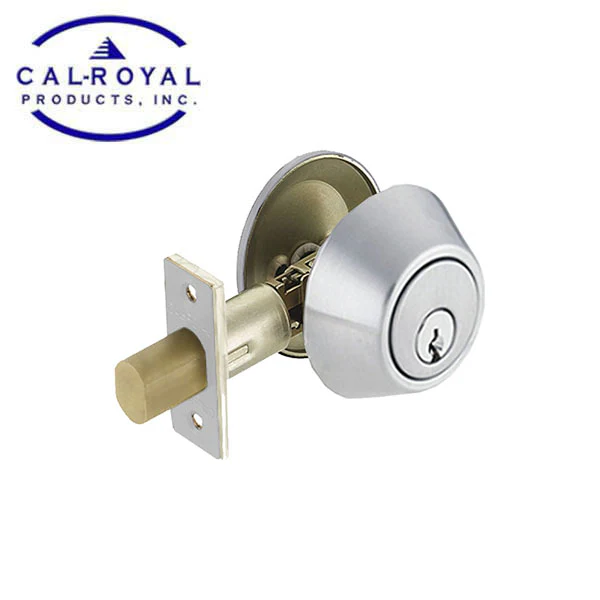

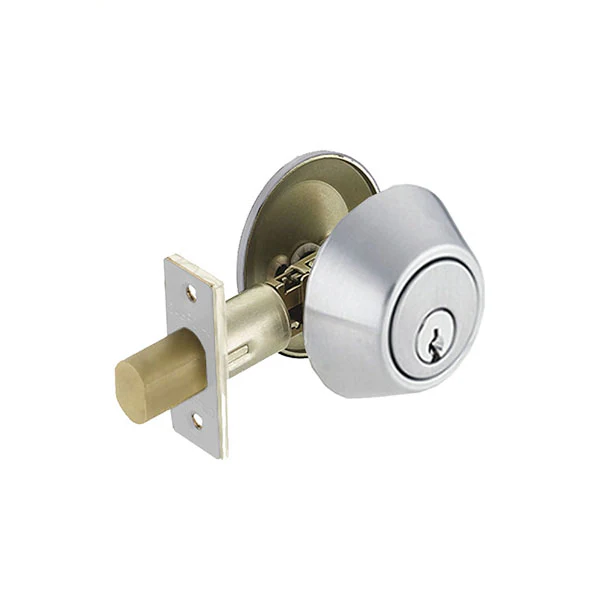

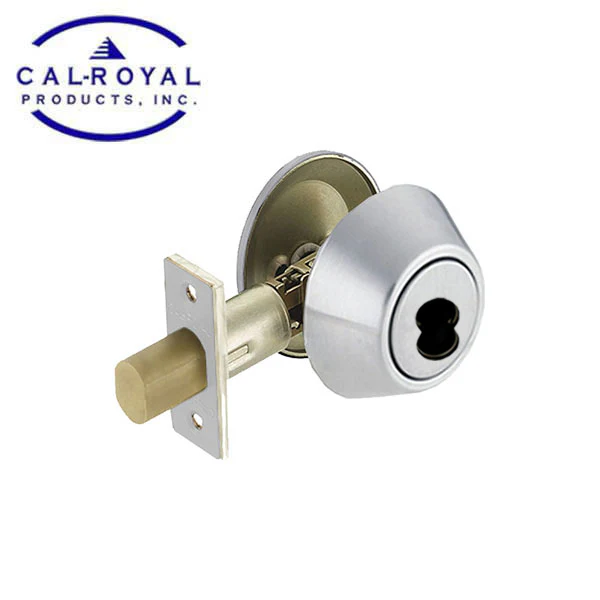

Cal-Royal - ICT220 - Standard Duty Deadbolt - Single Cylinder - Less Core - Satin Chrome - Grade 3
Features
- Conforms with ANSI A 156.5 Series 4000, Standard Duty GRADE 3
- Lifetime Warranty
- Solid brass 6 pin āCā keyway cylinder
- ADA (American Disability Act) Ergonomic Thumbturn
- Tapered cylinder guard and metal insert, turns free with any removal attempt
- Deadbolt thrown or retracted by key from outside or by inside turn unit.
- Bolt automatically deadlocks when fully thrown.
- Adjustable dead bolt
Ā Specifications
| Handing | Non-Handed |
| Cylinder |
Less Core (Cylinder not included) |
| Door Thickness | 1-3/8" (35 mm) - 1-3/4 " (44.5 mm) |
| Backset | Adjustable 2 3/8" - 2 3/4" |
| Deadbolt Faceplate | Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations |
| Material | Wrought Brass or Stainless Steel |
| Strike | 1-1/8" x 2-3/4" square corner |
| Bore Diameter | 1ā for latch, 2 ā ā for lock housing. |
| Finish | US26 - Satin Chrome |
| Certifications |
Grade 3 |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
