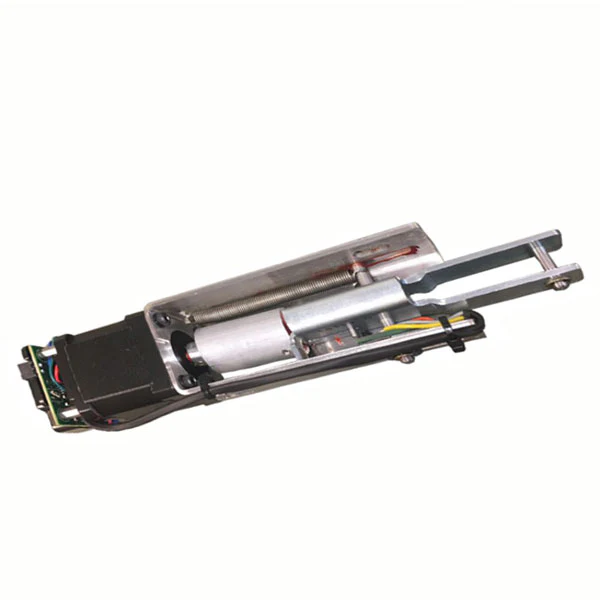

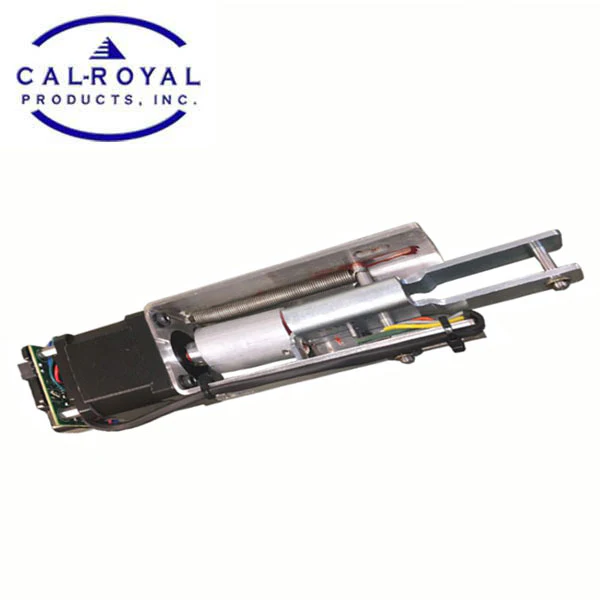

Cal-Royal - Electric Latch Retraction Kit - 22-28V - For 7700 Series
Our motor driven electrified latch pullback exit device allows for remote keyless access control in high occupancy/high traffic conditions where exit devices are required. Common applications include conditions such as hospitals, airports, schools, churches and they are commonly specified in applications that require automatic door openers. The device may be continuously energized allowing for a push / pull condition if desired.
Features:
- Available on 7700 Series, including rim, vertical rod, concealed vertical rod, mortise exit device, fire and non fire-rated devices
- MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
- “PTS” (Push to Set Technology): 5 second electronic adjustment for easy post installation adjustment
- Electric dogging rated for continuous duty
- Auto retraction if dogged push pad is pulled from position
- Low Current Draw
- Field switchable to “High Torque” mode
- Up to 300’ wire run with (2) 18ga wire
- 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
- 3-year “No Hassle” warranty
Specifications
| Application | For 7700 Series |
| Voltage | 22 to 28V DC |
| System protection | unit shutdown when voltage exceeds 28V DC |
| Average In-rush Current | 900mA |
| Average Hold Current | 215mA |
| PTS adjustment | Approx. ¼” |
| Wire run | 300’ with 18ga wire |
| Manufacturer's Warranty | 3 Years |
