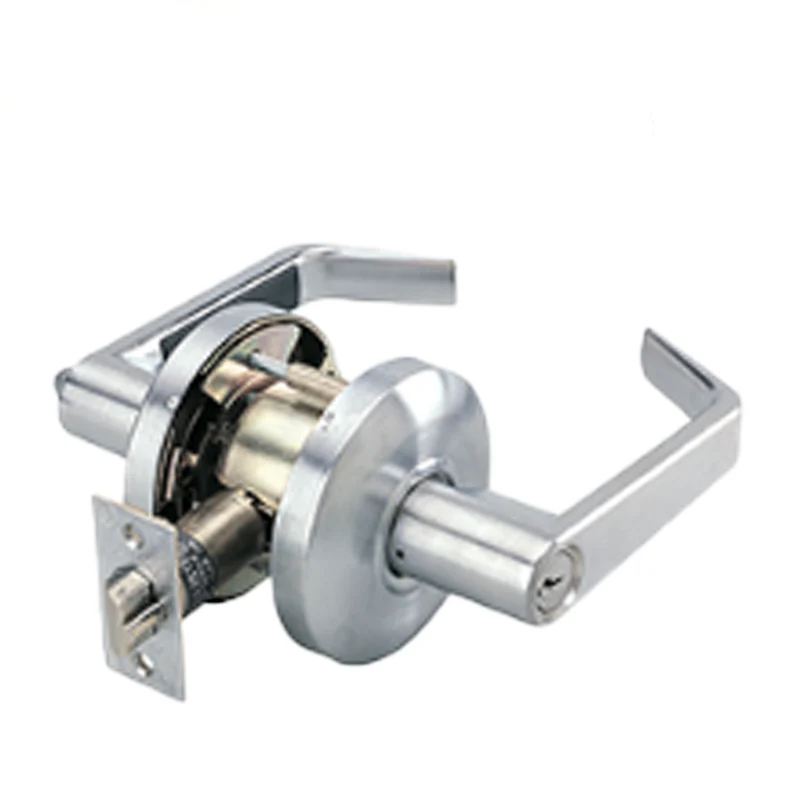

Cal-Royal - CSL05 - Cylindrical Leverset - Satin Chrome - Storeroom - Schlage C Keyway - Fire Rated - ASA Strike - Grade 2 - Satin Chrome US26D

Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.

Features:

• BHMA Certified Lifetime Warranty, GRADE 2

• Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free

• UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997

• Solid brass 6-pin Schlage “C” keyway
• Individual springs on each side to prevent lever sag, maintain reliability, and reduce maintenance
• Hurricane Approved Hardware. Florida Building Code FL13922

• Meets the Buy American Act

Specifications:

Applications	For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings.
Door Ranges	1 ⅜” to 1 ¾” thickness doors.
Backset	2 ¾”
Latch Bolt	½” Throw solid brass, reversible for RH or LH applications. UL Listed.
Latch Faceplate	2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset.
ANSI Standards	Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
Cylinder Material	Brass
Strikes	ASA strike standard
Lever Style Family	Straight Return Lever

Downloads:

• Catalog
