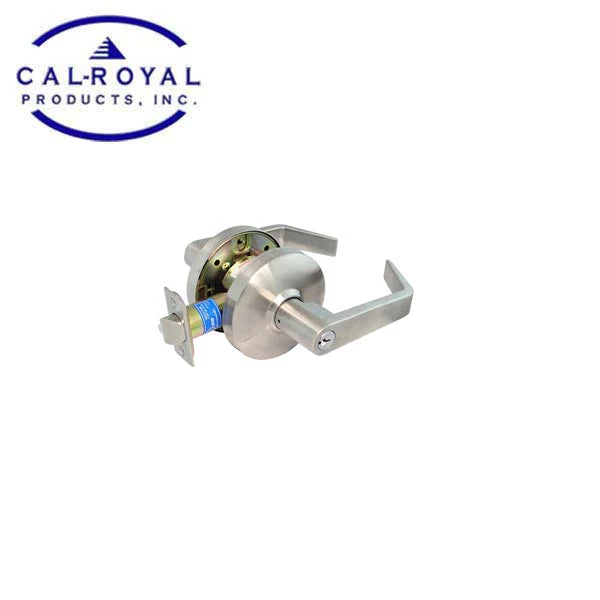

Cal-Royal - CGN00 - Cylindrical Leverset - Stainless Steel - Optional Function - Grade 1
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- More information below
Specifications:
| General | Full length 4 3/4" lever handle with 3/8" return on GN and SPA design. Rose Diameter 3 1/2". Key Removable outside lever for fast re-keying. Non-handed levers. Concealed mounting Screws |
| Clutch | Free turning handle in the lock position without retracting the latch, to deter breaking of handle. |
| Applications | For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings. |
| Door Ranges | 1 3/8" to 1 3/4" thickness. |
| ANSI Standards | Meets or exceeds ANSI / BHMA A156.2 Series 4000, Grade 1 requirements. |
| Latch Faceplate | 2 1/4" x 1 1/8" for 2 3/4" backset. |
| Strikes | ASA 1 1/4" x 4 7/8" |
| Trim | Thru-bolted assembly through door with seperate spring cage for each lever. |
| Housing | Cold rolled steel and zinc dichromate finish for rust resistance with precision cast steel retractor. 2 1/8" diameter bore. |
