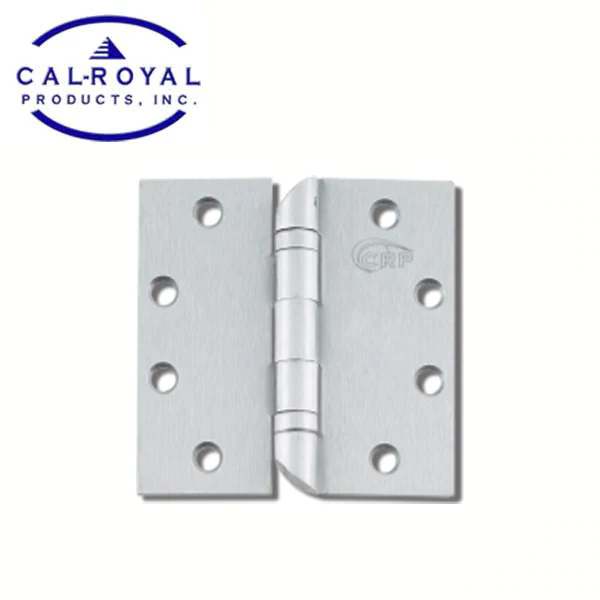

Cal-Royal - Architectural Hinge - Full Mortise - Ball Bearing - 4-1/2" x 4-1/2" - Stainless Steel
CAL-ROYAL’S complete line of Hinges offer unsurpassed value, quality and service. Engineered to meet or exceed industry standards that customers have come to expect. Rounded tips at barrels end to help prevent hanging objects on the hinge. The hinge pin is irremovable. Hospital tips are used in medical or security areas and mental institutions to prevent tampering and/or injury.
Features
- 2 Ball Bearing
- 4-1/2" x 4-1/2"
- US26 - Stainless Steel
Specifications
| Hinge Type | Full Mortise |
| Bearing Type |
2 Ball Bearing |
| Corner Type | Square |
| Duty Weight / Class | Standard Weight |
| Height | 4-1/2" |
| Width | 4-1/2" |
| Screws | Machine: 1/2 x 12-24 Wood: 1-1/4 x 12 |
| Mounting Location | Center Hinge Position |
| Material Gauge | 0.134 |
| Finish | US26 - Stainless Steel |
| Certifications | UL Listed, BHMA Certified |
| Manufacturer's Warranty | Lifetime |
Downloads
- Template
- Catalog
