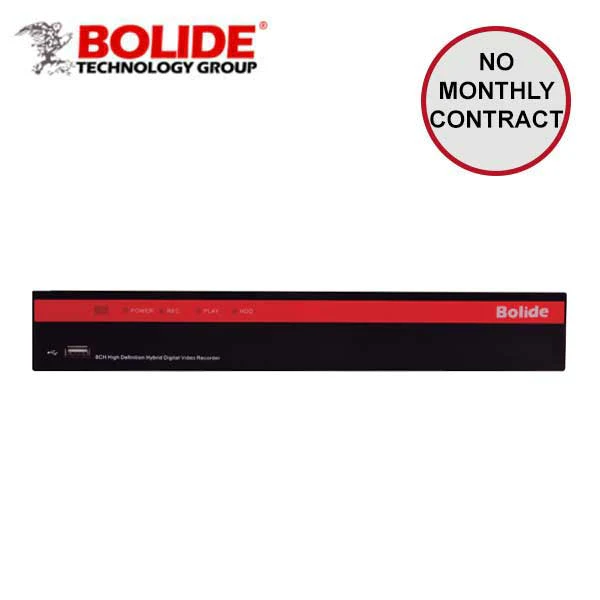

Bolide / Hybrid DVR / 8 Channel / Control Over Coax / 5MP / 4K / 8TB HDD Interface / SVR9508H
- 8-Channel Inputs
- H.265/H.264 Video Compression
- PTZ Control
- IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats
- Records Up to 5MP, 4K Output,
- HDMI and VGA Outputs
- 4-Channel Audio In/ 1-Channel Audio Out
- 1 SATA Hard Drive Bay Up to 8TB
- Hard Drive Not Included ... sold seperately HERE
- Offers QuickConnect
Specifications:
| Record Resolution: |
Analog: 5MP/4MP/3MP/1080P/720P/960H IP: 4MP/3MP/1080P/720P/960H |
| Record Speed: |
Analog: 5MP: 12fps (each ch) 4MP: 12fps (each ch) 3MP: 12fps (each ch) 1080P: PAL: 25fps (each ch)/NTSC: 30fps (each ch) 720P: PAL: 25fps (each ch)/NTSC: 30fps (each ch) 960H: PAL: 25fps (each ch)/NTSC: 30fps (each ch) IP: PAL: 25fps (each ch)/NTSC: 30fps (each ch) |
| Display Resolution: |
Analog: 5MP (20fps) 4MP/3MP (30fps) 1080P/720P/960H IP: 1080P/720P/960H |
| Feature: | 1/4/6/8/9/10/13/14/16 S.E.Q |
| Video Compression: | H.265/H.264 |
| Video System: | NTSC/PAL |
| Operating System: | Embedded Linux |
| Analog Video Input/Output: | 8CH inputs/VGA& HDMI output |
| Video Input: |
IP: Up to 4CH. Composite: Up to 12CH (Analog video & IP video) |
| Audio Input/Output: | 4CH inputs / 1 CH output (RCA) |
| Recording Bandwidth: |
IP: 32Mbps ~ 96Mbps. 5MP/96fps MAX |
| Recording Mode: | Continuous/Manual/Motion detect |
| Simultaneous Playback: | 8 Channels at once |
| USB: | 2 x USB (for mouse and backup) |
| PTZ Control: | Yes (RS485) Control over Coax |
| HDD Interface: | 1 SATA Hard Drive Bay Up to 8TB Hard Drive Not Included ... sold seperately HERE |
| Multiplex Operation: |
Live display, record, playback, backup, and network |
| Network Protocol: | LAN, DHCP, and DDNS |
| Voltage: | 12VDC / 2Amps |
| Working Temp: | -10Ā°C ~ 55Ā°C |
| Humidity: | 10% ~ 90% Humidity |
| Dimension: | 300 x 227 x 53mm (11.8 x 8.9 x 2.1in) |
Downloads:
$449.00
Bolide / Hybrid DVR / 8 Channel / Control Over Coax / 5MP / 4K / 8TB HDD Interface / SVR9508Hā
$449.00
