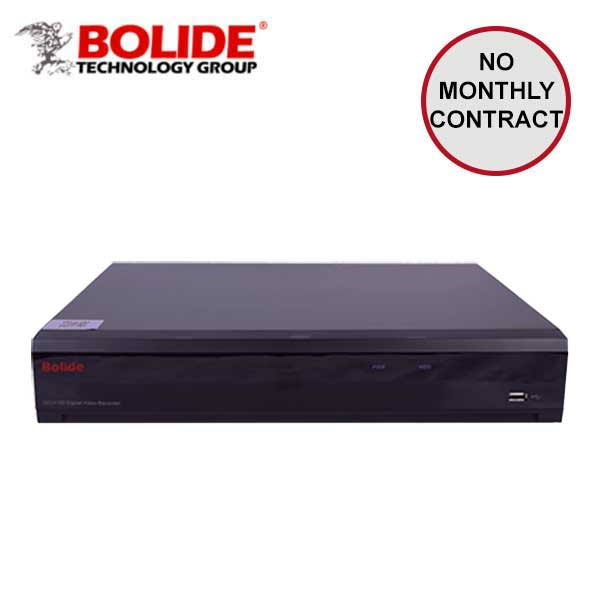

Bolide / Hybrid DVR / 32 Channel / Control Over Coax / 5MP / 4K / 32TB HDD Interface / SVR9532
- 32-Channel Inputs
- H.265 HD Over Coax
- IP Hybrid DVR (Analog & IP)
- AHD / TVI / CVI/ Analog Formats
- Up to 8 Additional IP Cameras
- Supports Up to 4K Cameras
- 1080P Throughput 4K Output; HDMI, VGA
- 4-Channel Audio In/ 1-Channel Audio Out
- 4 Hard Drive Bay Up to 8TB each bay, 32TB max
- Hard Drive Not Included ... sold seperately HERE
- Quick Connect
Specifications:
| Record Bandwidth: | 32Mbps IP recording, 128Mbps Max |
| Record Resolution: | Analog: 5MP/4MP/3MP/1080P/720P/960H IP: 5MP/4MP/3MP1080P/720P |
| Record Speed: | Analog: 5MP: 11fps (each ch) 3MP: 8fps (each ch) 1080P: PAL: 15fps (each ch) 720P: PAL: 25fps (each ch)/NTSC: 30fps (each ch) 960H: PAL: 25fps (each ch)/NTSC: 30fps (each ch) IP: PAL: 25fps (each ch)/NTSC: 30fps (each ch) |
| Video System: | NTSC/PAL |
| Operating System: | Embedded Linux |
| Video input/output: | Analog: 32CH inputs/VGA& HDMI output IP: 8CH Input Composite: Up to 40 CH (Analog video + IP video) |
| Audio Input/Output: | 4CH inputs / 1 CH output (RCA) |
| Alarm Input/Output: | 8CH inputs /1CH output |
| Max Decode Performance: | 5MP: 16CH real-time |
| Synchronous Playback: |
16CH |
| Network Type: |
TCP/IP, P2P, 1 SATAHDD, up to 8TB |
| Video Compression: | H.265 / H.264 |
| HDD Interface: | 4 SATA up to 32TB Hard Drive Not Included ... sold seperately HERE |
| PTZ Control: |
RS-485, Control over Coax |
| VGA / HDMI: |
1280x1024, 1440x900, 1280x720, 1920x1080, 1680x1050, 1600x1200, 1920x1200, 2560x1440, 3840x2160 |
| Mobile Connect: |
Quick Connect allows mobile connection |
| USB: | 2x 2.0 USB for mouse/backup |
| Voltage: | 12VDC / 5 Amps |
| Dimensions W x D x H: | 378 x 326 x 66mm (14.9" x 12.8" x 2.6"in) |
Downloads:
$410.11
Original: $1,171.73
-65%Bolide / Hybrid DVR / 32 Channel / Control Over Coax / 5MP / 4K / 32TB HDD Interface / SVR9532ā
$1,171.73
$410.11Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- 32-Channel Inputs
- H.265 HD Over Coax
- IP Hybrid DVR (Analog & IP)
- AHD / TVI / CVI/ Analog Formats
- Up to 8 Additional IP Cameras
- Supports Up to 4K Cameras
- 1080P Throughput 4K Output; HDMI, VGA
- 4-Channel Audio In/ 1-Channel Audio Out
- 4 Hard Drive Bay Up to 8TB each bay, 32TB max
- Hard Drive Not Included ... sold seperately HERE
- Quick Connect
Specifications:
| Record Bandwidth: | 32Mbps IP recording, 128Mbps Max |
| Record Resolution: | Analog: 5MP/4MP/3MP/1080P/720P/960H IP: 5MP/4MP/3MP1080P/720P |
| Record Speed: | Analog: 5MP: 11fps (each ch) 3MP: 8fps (each ch) 1080P: PAL: 15fps (each ch) 720P: PAL: 25fps (each ch)/NTSC: 30fps (each ch) 960H: PAL: 25fps (each ch)/NTSC: 30fps (each ch) IP: PAL: 25fps (each ch)/NTSC: 30fps (each ch) |
| Video System: | NTSC/PAL |
| Operating System: | Embedded Linux |
| Video input/output: | Analog: 32CH inputs/VGA& HDMI output IP: 8CH Input Composite: Up to 40 CH (Analog video + IP video) |
| Audio Input/Output: | 4CH inputs / 1 CH output (RCA) |
| Alarm Input/Output: | 8CH inputs /1CH output |
| Max Decode Performance: | 5MP: 16CH real-time |
| Synchronous Playback: |
16CH |
| Network Type: |
TCP/IP, P2P, 1 SATAHDD, up to 8TB |
| Video Compression: | H.265 / H.264 |
| HDD Interface: | 4 SATA up to 32TB Hard Drive Not Included ... sold seperately HERE |
| PTZ Control: |
RS-485, Control over Coax |
| VGA / HDMI: |
1280x1024, 1440x900, 1280x720, 1920x1080, 1680x1050, 1600x1200, 1920x1200, 2560x1440, 3840x2160 |
| Mobile Connect: |
Quick Connect allows mobile connection |
| USB: | 2x 2.0 USB for mouse/backup |
| Voltage: | 12VDC / 5 Amps |
| Dimensions W x D x H: | 378 x 326 x 66mm (14.9" x 12.8" x 2.6"in) |
