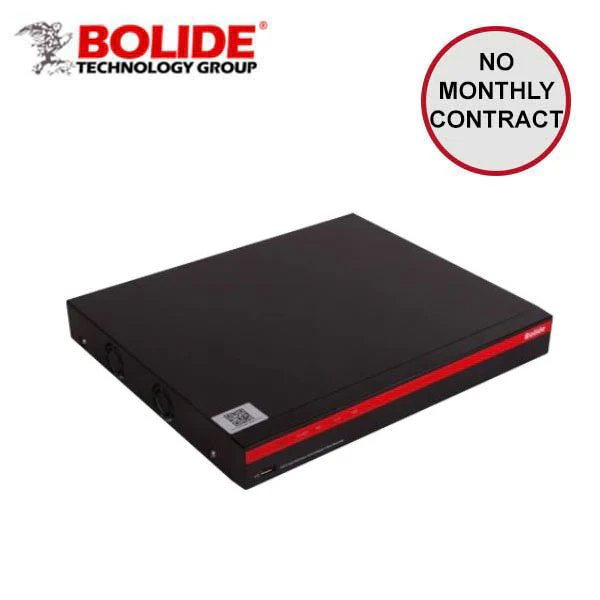

Bolide / Hybrid DVR / 16 Channel / Control Over Coax / 5MP / 4K / 24TB HDD Interface / SVR9516HAI
- 16-Channel Inputs
- H.265 HD Over Coax
- IP Hybrid DVR (Analog & IP)
- AHD / TVI / CVI/ Analog Formats
- Up to 8 Additional IP Cameras
- Supports Up to 4K Cameras
- 1080P Throughput 4K Output; HDMI, VGA
- 4-Channel Audio In/ 1-Channel Audio Out
- 4 Hard Drive Bay Up to 8TB each bay, 24TB max
- Hard Drive Not Included ... sold seperately HERE
- Quick Connect
Specifications:
| Record | |
| Record Resolution: | Analog: 5MP/4MP/3MP/1080P/720P/960H IP: 5MP/4MP/3MP1080P/720P |
| Record Speed: | Analog: 5MP: 11fps (each ch) 4MP: 15fps (each ch) 3MP: 12fps (each ch) 1080P: PAL: : 15fps (each ch)/NTSC: 30fps (each ch) 720P: PAL: : PAL: 25fps (each ch)/NTSC: 30fps (each ch) ) 960H: PAL: : 25fps (each ch)/NTSC: 30fps (each ch) IP: PAL: 25fps (each ch)/NTSC: 30fps (each ch) |
| Video Compression: | H.265/H.264 |
| Video System: | NTSC/PAL |
| Operating System: | Embedded Linux |
| Video input/output: | Analog: 16CH inputs/VGA& HDMI output IP: 8CH Input Composite: Up to 16CH (Analog video + IP video) |
| Audio Input/Output: | 4CH inputs / 1 CH output (RCA) |
| IP-Recording Bandwidth: | 64Mbps~ 96Mbps |
| Max. Output Bandwidth: | 128Mbps |
| Max. Decode Performance: | 5MP: 176fps , 4MP: 240fps ,1080P: 480fps |
| Recording Mode | Continuous/Manual/Motion detect |
| Synchronous Playback | 16CH |
| Network Type: |
TTCP/IP, P2P |
| HDD Interface: | Hard Drive Not Included ... sold seperately HERE 2 x SATA, Up to 8TB per bay |
| Multiplex Operation: | Live display, record, playback, backup, and network |
| USB: | 2 x USB (for mouse and backup) |
| PTZ Control: |
RS-485, Control over Coax |
| Mobile Surveillance | Supports mobile phones: iPhone/Android |
| VGA / HDMI: |
1280x1024, 1440x900, 1280x720, 1920x1080, 1680x1050, 1600x1200, 1920x1200, 2560x1440, 3840x2160 |
| Mobile Connect: |
Quick Connect allows mobile connection |
| Voltage: | 12VDC / 5 Amps |
| Dimensions: | 300 x 227 x 53mm |
| Display | |
| Resolution: | Analog: 5MP (20fps), 4MP/3MP (30fps), 1080P/720P/960H IP: 4MP/3MP/1080P/720P |
| Feature: | 1/4/6/8/9/10/13/14/16/17/19/ 22/25/S.E.Q. |
Downloads:
