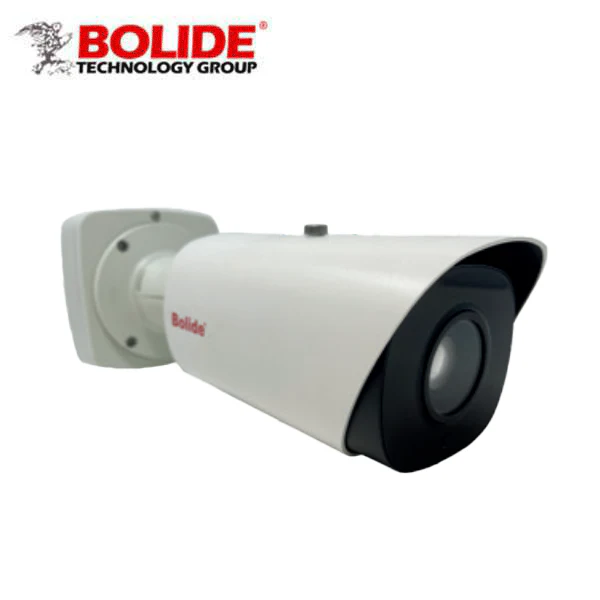

Bolide - BN1036-LPR - 5MP / IR Camera / Motorized Optical Zoom / 2.7-13.5mm Lens / Outdoor / IP67 / 65m IR / 16W Max / White
Bolide License Plate Recognition 5Mp Camera License plate recognition (LPR) cameras are specialized surveillance units designed to detect, capture and log vehicle license plates.
Features:
- Smart IR II (Combining the High Beam and Low Beam to adjust IR intensity to fit different lighting conditions)
- HLC (High Light Compensation. Improving image visibility under strong light sources)
- P-Iris (Giving you a more clear scene with depth of view)
- Defog (Defog technology. Restoring clear images in hazy and foggy weather)
- Integrated Cable Management (Combining the power interface, Pot port, and other interfaces in the base neatly)
- 256G (Supporting ultra-large external micrOSD / SDHC / SDXC card storage up to 256G)
- Smart Stream (Bandwidth, storage and bit rate are saved with Smart Stream On, eg, H.265+ saves 70% ~ 80% bandwidth that of H.264)
-
Specifications:
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: [email protected] Color: [email protected] B/W: 0Lux with IR on |
| WDR |
140db Super WDR |
| Shutter Time |
1/100000s~1s |
| IR Distance | Up to 65m |
| Day and Night mode | Day/Night/Auto/Customize/Schedule |
| S/N |
>55dB |
| Lens | |
| Lens |
Motorized 2.7~13.5mm |
| Field of View |
H113º~H33º/D130º~D38º/V60º~V18º (2.7~13.5mm) |
| Mount |
Φ14 |
| Focus Control | Auto/Manual |
| Iris Control (Optional for I Series) | Auto/Manual |
| LPR | |
| Max Vehicle Speed |
200km/h |
| Recognition accuracy |
>95% |
| Coverage |
Support Simultaneous detection of 4 regions |
| White/Black List | Up to 1000 records inside the camera |
| Smart Traffic Detection | License plate recognition, plate type classification, plate color recognition, vehicle type classification, vehicle color recognition, Vehicle direction detection |
| Video | |
| Max Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps @ (1920x1080), |
| Secondary Stream | 50Hz: 50fps @(704x576, 640x480, 640x360, 352x288, 320x240, 320×192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640x360, 320×240, 320×192, 320x180) 50Hz: 25fps@(1920×1080, 1280×720, 704x576, 640x480, 640×360, 320×240, 320x192, 320×180) |
| Video Compression | Н.265+/H.265(HEVC//H.264+/H.264/MUPEG |
| Video Bit Rate | 16Kbps-16Mbps|CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 maskareas and 4 mosaicareas) |
| ROI | Upto 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1 RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 02.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate |
8/16/32/44.1/48KHz |
| Audio Bit Rate |
16~256kbps |
| Two-way Audio |
Support |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatability | ONVIF Profile G& Q& S & T, API |
| General | |
| Working Temperature | -40°C ~ 60°C |
| Working Humidity | 0~90% (Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V+10% |
| Power Consumption | 8W MAX 16W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proofIK10-rated Metal Housing |
| Weight | 1630g |
| Dimensions | 320mmX134mmX126mm |
| Manufacturer Warranty | 3/5 Years |
Downloads:
