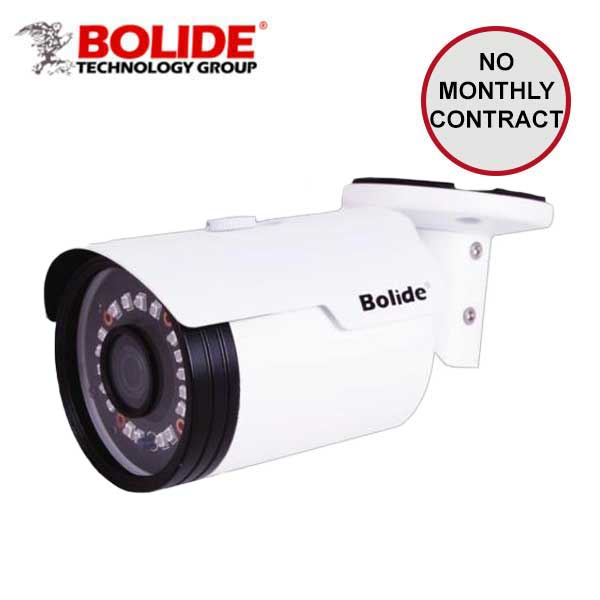

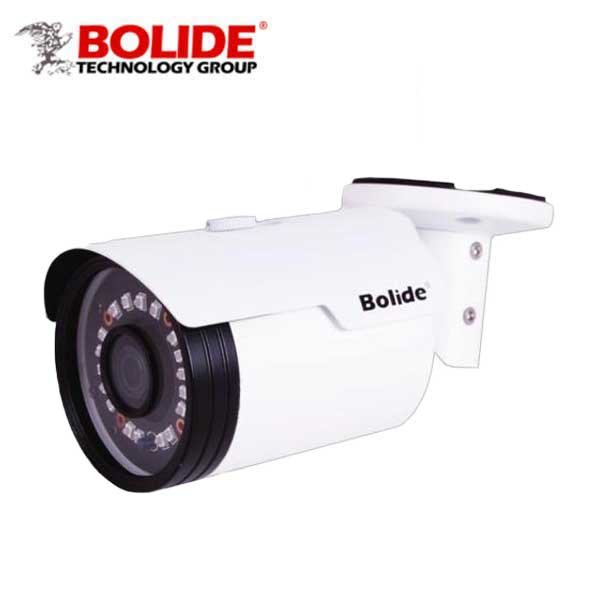

Bolide - BC1535 - HDCVI / 5MP / Bullet Camera / Fixed / 3.6mm Lens / Outdoor / IP66 / 22m IR / DC12V / White Finish
The new BC1535 supports 9 different video formats. Using the Quickswitch joystick built-in to the camera chord, the user can switch between AHD, TVI, CVI, and analog modes. After accessing the on-screen display via DVR or camera, the camera can be set to support 5MP resolution to make it the most supported HD over coax camera in the market.
Features:
- 1/2.7" CMOS
- 3.6mm Lens Fixed Lens
- 5MP
- AHD / TVI / CVI / Analog
- IR Distance up to 22m
- 12VDC - 24VAC Dual Voltage
- Control Over Coax, OSD, Quickswitch
Specifications:
| Image Sensor | 1 / 2.7ā CMOS |
| Resolution | 2560 (H) x 1920 (V) |
| Effective Pixels | 5 Mega Pixel |
| Focal Length | 3.6mm |
| IR Distance | Up to 75 ft. / 18 pcs. |
| Output Mode | AHD / CVI / TVI / Analog |
| Min. Illumination | Color: 0.1 Lux White/Black: 0.1 Lux ( with IR LED on) |
| AGC | Auto |
| WB | Auto |
| AES | NTSC: 1/60s-1/10000s PAL: 1/50s-10000s |
| D/N Switch | Color/WB/IR (outside) / inside auto |
| Contrast | 10 Level can be adjusted |
| Sharpness | 20 Level can be adjusted |
| Saturation | 20 Level can be adjusted |
| DNR | 15 Level can be adjusted |
| Video System | NTSC |
| DWDR | OFF/ON |
| S/N Ratio | More than 48dB |
| Storage Temp. | -40Ā°C ~ 60Ā°C |
| Operating Temp. | -40Ā°C ~ 55Ā°C |
| Power Supply | DC12V |
| Weight (with bracket) | .8 lbs |
