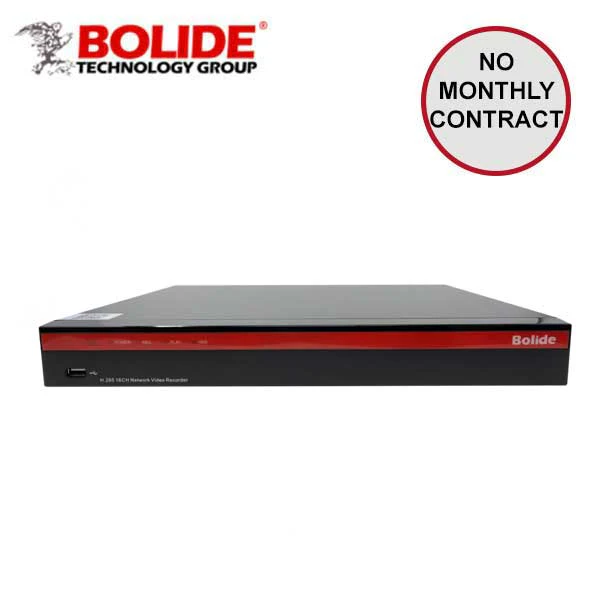

Bolide / 16 Channel / 8MP / 4K / NVR / 2 SATA / 16TB HDD / 16 Port POE / BN-NVR-16NX-S-NDAA
- 16-Channel Inputs
- H.265 Video Compression
- 16-Port Built-in POE
- Supports Up to 4K Cameras
- 112Mbps Throughput 4K Output; HDMI, VGA
- 1-Channel Audio In/ 1-Channel Audio Out
- 2 Hard Drive Bays Up to 8TB each bay, 16TB max
- Hard Drive Not Included ... sold seperately HERE
- iPac AI Enabled
- Quick Connect
Specifications:
| Record Bandwidth: | Max 112Mbps Throughout |
| Record Resolution: | 8MP(4K), 5MP, 3MP, 2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Live/Playback Performance: | 8MP (4K): 45FPS; 4MP: 90FPS; 2MP: 180FPS |
| Video Analytics: | Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest. DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection |
| Display Resolution: | 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 1680x1050, 1600x1200, 1900x1200, 2560x1440, 3840x2160 |
| Display Split: | 1 / 4 / 6 / 8 / 9 / 10 / 13 / 14 / 16 |
| Video Compression: | H.265 |
| RS 485, E-SATA, Line in: |
yes |
| Output Interface: | 1 HDMI (up to 4K) , 1 VGA |
| Alarm Input/Output: | 8CH Input / 1CH Output |
| Audio: | 1-Channel Audio In / 1-Channel Audio Out |
| Ethernet: | RJ-45 port (1000M) |
| Mobile Connect: |
Quick Connect allows mobile connection |
| Internal HDD: |
2 SATA HDDs, each HDD up to 8TB Hard Drive Not Included ... sold seperately HERE |
| USB: | 2x 2.0 USB for mouse |
| ONVIF: | ONVIF Profile S Version 2.6 |
| POE: | 16 PoE ports, single port up to 802.3at(30w) |
| Voltage: | 2x AC 100~240V, PoE Switch: 48V |
| Dimensions W x D x H: | 17.5ā x 17ā x 3.5ā ( Rackmount Ears Included ) |
Downloads:
