Baldwin Estate - Soho Lever Set - R026 Rose - 150 - Satin Nickel - Passage - Grade 2

BLD-5485V.150.PASS

Baldwin 5485V.PASS Passage Lever Set with R026 Roses and Concealed Screws

Passage Function: Baldwin's passage leversets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where no locking is necessary. Sometimes passage levers are used in conjunction with a deadbolt for an entrance or back door.

Features:

• Finished and polished by hand

• Anti-friction nylon insert provides quiet closing and reduces strike plate scratches
• Working parts are precisely machined for maximum strength

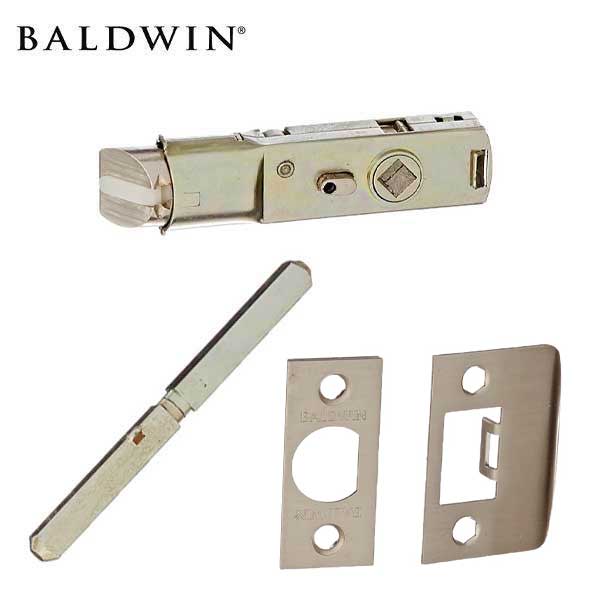

• Comes with R026 rose and full lip strike
•


Specifications

Configuration	Leverset
Function	Passage
Cylinder	No Cylinder
Keyway	No Cylinder
Handing	Reversible Left or Right
Finish	150 - Satin Nickel
Backset	Adjustable 2-3/8" or 2-3/4"
Rose Size	2.75" x 3.00"
Cross Bore	2-1/8"
Door Thickness	1-3/8"
Lever Length	4.367"
Concealed Screws	Yes
BHMA Certification	Grade 2

Downloads

• Installation Instructions
