Baldwin Estate - 5162 Lever Set - R017 Square Rose - 102 - Optional Finish - Passage/Privacy - Grade 2
BLD-5162.1XX.XXXX

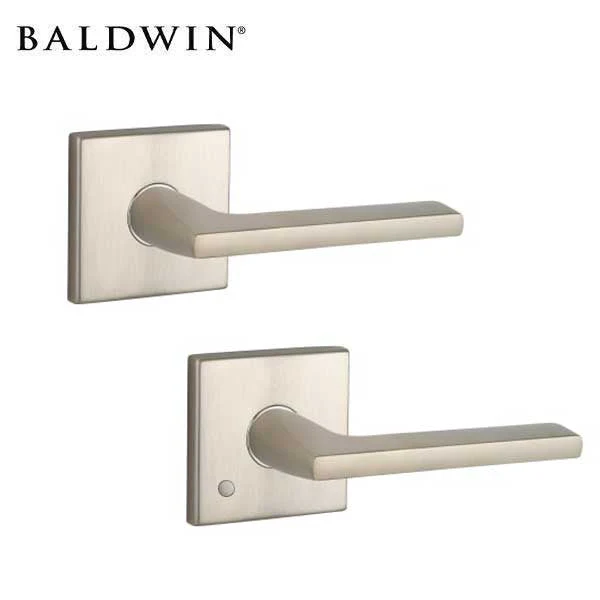

Baldwin 5162 Lever Set with R017 Roses and Concealed Screws
Passage Function: Baldwin's passage leversets have no locking function and are free turning on both sides. These knobs are perfect for a hallway or closet where no locking is necessary. Sometimes passage knobs are used in conjunction with a deadbolt for an entrance or back door.
Features:
- Finished and polished by hand
- Anti-friction nylon insert provides quiet closing and reduces strike plate scratches
- Working parts are precisely machined for maximum strength

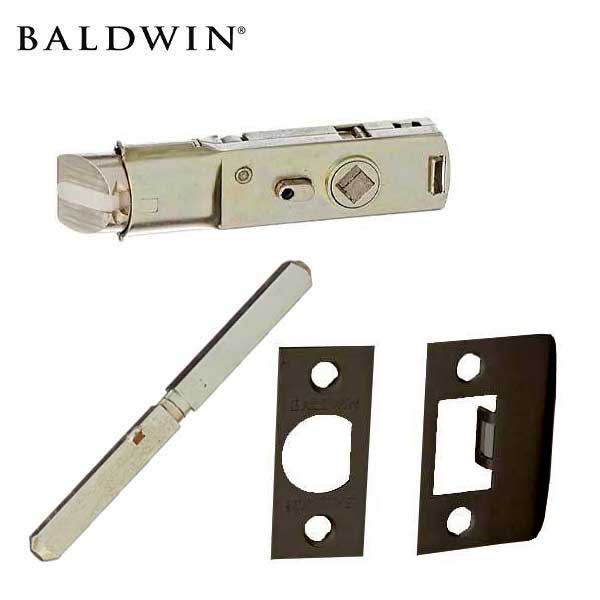

- Comes with R017 rose and full lip strike
Specifications
| Configuration |
Leverset |
| Optional Function |
Passage or Privacy |
| Cylinder | No Cylinder |
| Keyway | No Cylinder |
| Handing | Reversible Left or Right |
| Optional Finish | 102 - Oil Rubbed Bronze 150 - Satin Nickel |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Rose Size | 2.625" x 2.625" square |
| Cross Bore |
2-1/8" |
| Door Thickness |
1-3/8" |
| Lever Length | 4.46" |
| Concealed Screws | Yes |
| BHMA Certification |
Grade 2 |
Downloads
