Baldwin Estate - 5015 Classic Knob Set - 5048 Circle Rose - 112 - Venetian Bronze - Passage - Grade 2

BLD-5015.112.PASS

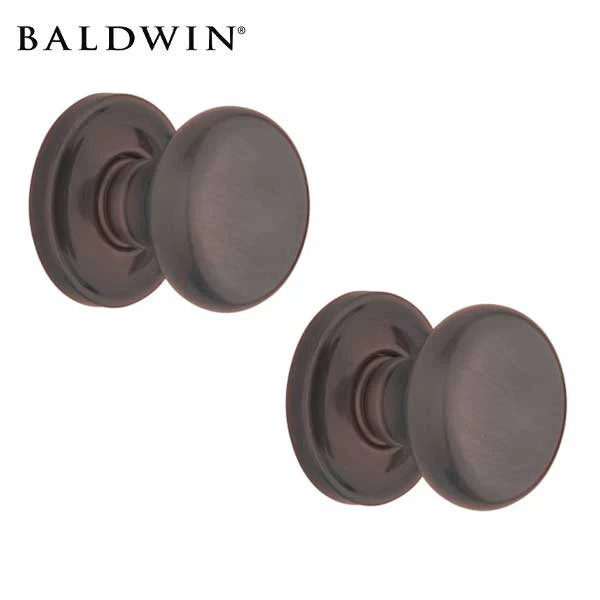

5015.PASS Passage Knob Set with 5048 Roses and Concealed Screws

Passage Function: Baldwin's passage knobsets have no locking function and are free turning on both sides. These knobs are perfect for a hallway or closet where no locking is necessary. Sometimes passage knobs are used in conjunction with a deadbolt for an entrance or back door.

Features:

• Finished and polished by hand

• Anti-friction nylon insert provides quiet closing and reduces strike plate scratches
• Working parts are precisely machined for maximum strength

• Comes with 5048 rose and full lip strike



Specifications

Configuration	Knobset
Function	Passage
Handing	Reversible Left or Right
Finish	112- Venetian Bronze
Latch Faceplate	Square Corner
Backset	Adjustable 2-3/8" or 2-3/4"
Rose Diameter	2-5/8"
Cross Bore	2-1/8"
Door Thickness	1-3/8"
Knob Diameter	2-1/8"
Concealed Screws	Yes
28 Degree Latch	Yes
BHMA Certification	Grade 2

Downloads

• Template
• Installation Instructions
• Specifications

Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
