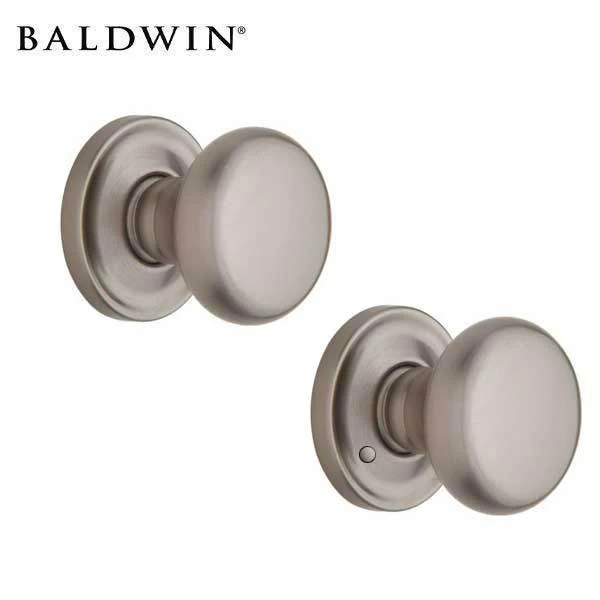

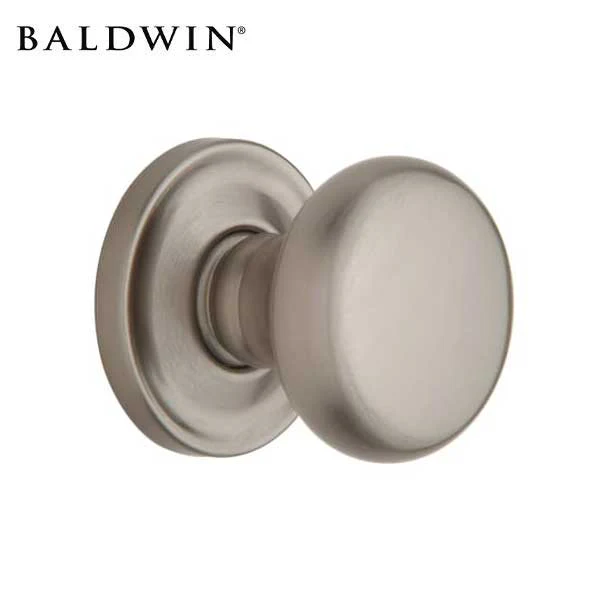

Baldwin Estate - 5015 Classic Knob Set - 5048 Circle Rose - 150 - Satin Nickel - Privacy - Grade 2

BLD-5015.150.PRIV

Baldwin 5015.PRIV Knob Set with 5048 Roses and Concealed Screws

Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside. Emergency release tool included (small pin)

Features:

• Finished and polished by hand

• Anti-friction nylon insert provides quiet closing and reduces strike plate scratches
• Working parts are precisely machined for maximum strength

• Comes with 5048 rose and full lip strike



Specifications

Configuration	Knobset
Function	Privacy - Small Pin on Interior Rose Locks Door
Handing	Reversible Left or Right
Finish	150 - Satin Nickel
Latch Faceplate	Square Corner
Backset	Adjustable 2-3/8" or 2-3/4"
Rose Diameter	2-5/8"
Cross Bore	2-1/8"
Door Thickness	1-3/8"
Knob Diameter	2-1/8"
Concealed Screws	Yes
28 Degree Latch	Yes
BHMA Certification	Grade 2

Downloads

• Template
• Installation Instructions
• Specifications
