AUTOSHOP - SmartTool2 ECO - Programmer and Odometer Tool for 2015-2021 Motorcycles Mopeds & Scooters

SmartTool2 ECO is a Key Programmer and Diagnostic Odometer Tool designed primarily to work with Motorcycles, Motorbikes, Mopeds and Scooters. Some of the Makes it currently supports are Honda, Yamaha, Suzuki, Piaggio and Vespa with more models being added.

Features

• Register new key when all keys lost
• Add a key with original
• Disable Missing / lost Keys
• Sync to smart box and ECM Engine Control Module when replacing new smart box
• Replace new ECM
• Erase KEYID (Pin code) in smart box unit
• Read KEYID and ECMID in smart box unit
• Check keys are synchronized with smart box
• Reflash EEPROM or main data of smart box
• Read ID (pin code) in IC/ECU
• Reset, erase ID in IC/ECU
• Replace new SCU
• Erase KEYID All key lost
• Disable Missing Keys
• Read the current mileage
• Correct odometer value of motorcycle dashboard.
• Restore the original data
• Automatic correct odometer
• Supports: Honda, Suzuki, Yamaha, Piaggio and Vespa
• Reset ECMID to new ECM Honda Shmode 2021 va Honda Vision 2021

• Reset ECMID to new ECM Yamaha AEROX 20018-2021

• ON/OFF smartkey mode (Smartkey OFF) for Honda ECU Shindengen (2016-2021)
• ON/OFF Immobilizer mode (IMMO OFF) for Piaggio/Vespa MUIG3 (ECU on throttle)

• Read KeyID and add new key (by reset code): Honda XADV 750-2021, Forza 750, CBRR 1000 - 2021
• One Year Manufacturer Warranty

Download Manual Here

Works with the Following (See Links BELOW FOR FULL FUNCTION Charts)

• HONDA FUNCTION CHART

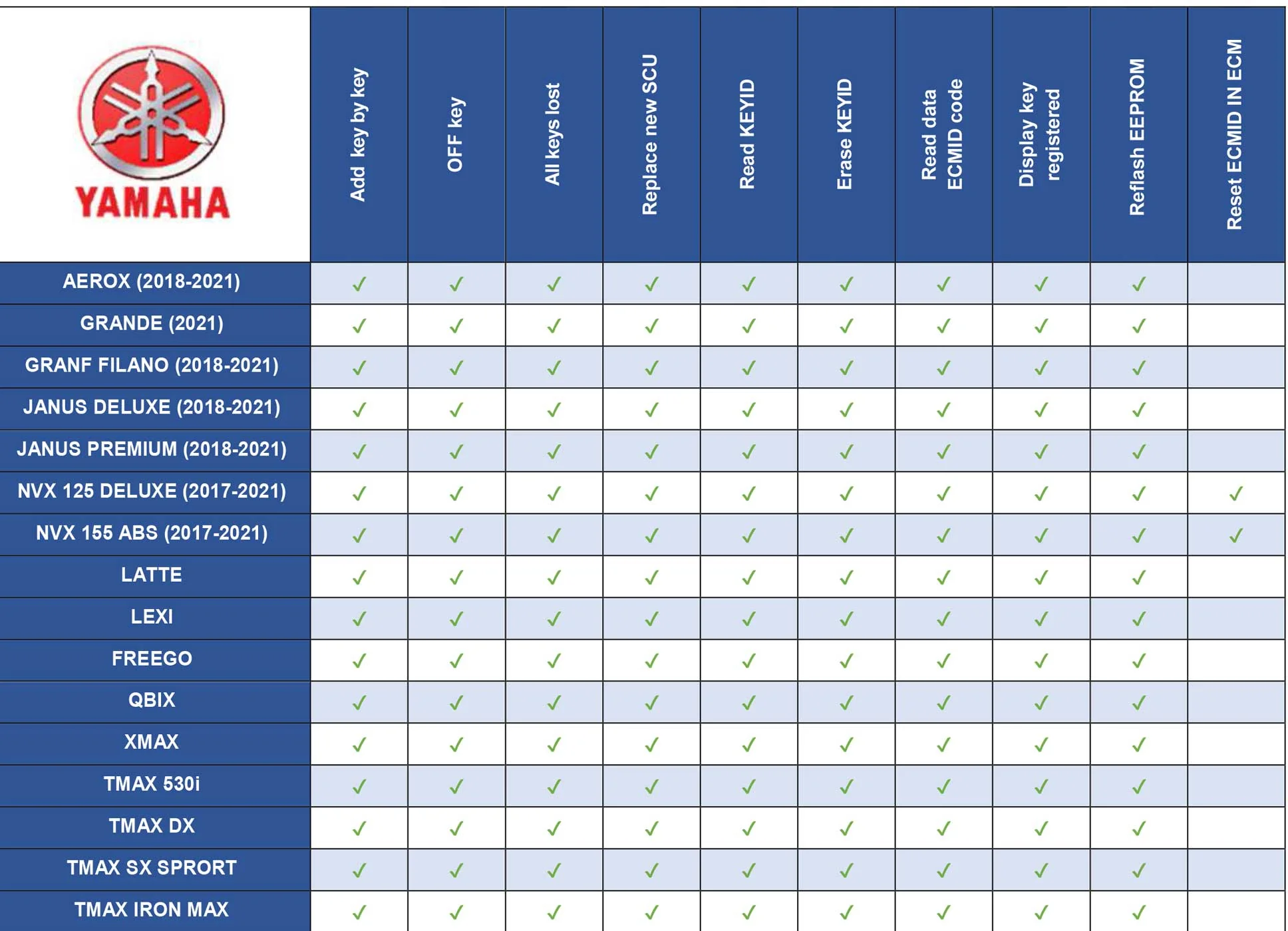

• YAMAHA FUNCTION CHART
• SUZUKI FUNCTION CHART
• PIAGGIO / VESPA FUNCTION CHART
• ODOMOETER FUNCTION CHART

HONDA:
AIRBLADE (2018-2021)
CLICK 125i (2018 - 2021)
LEAD 125 (2018 - 2021)
PCX (2016 - 2021)
SH 125/150/300 (2016 - 2021)
SH MODE (2016 - 2020)
VISION (2018 - 2021)
VARIO 125/150 (2018 - 2021)
X-ADV 750 (2018 - 2020)
FORZA 300 (2018 - 2020)
SCOOPY (2016 - 2021)
FORZA 300 (2021 - 2021)
X-ADV 750 (2021 - 2021)

YAMAHA:
AEROX (2018 - 2021)
GRANDE (2019 - 2021)
FREE GO (2020 - 2021)
LATTE (2020 - 2020)
JANUS (2017 - 2021)
NVX (2017 - 2021)
QBIX (2015 - 2021)
XMAX (2015 - 2021)
NMAX (2015 - 2021)
T-MAX 530i (2015 - 2021)
T-MAX DX (2015 - 2021)
T-MAX SX SPORT (2015 - 2021)
T-MAX IRON MAX (2015 - 2021)

SUZUKI:
RAIDER FI (2017-2020)
GSX FI (2017-2020)
Supported part number: K12, K44, K59, K66, K01, K02, K77, K78, K29, K36, K96, K97, K1F, K1R, K1N, K1Z, K1Y, K0R, K0S, K2C, K1B, K1W.

PIAGGIO / VESPA
List of supported ECU:AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ACII, AC2I, AC5I, AC8I, AC13I, MIU1, MIU2, MIU G3/RIU1, MIU4, PGU09, PGN04/PGS02/PGT01

Includes the following CABLES AND ACCESSORIES
