Autel - MaxiVideo - MV105S - Digital Inspection Camera - 5.5mm

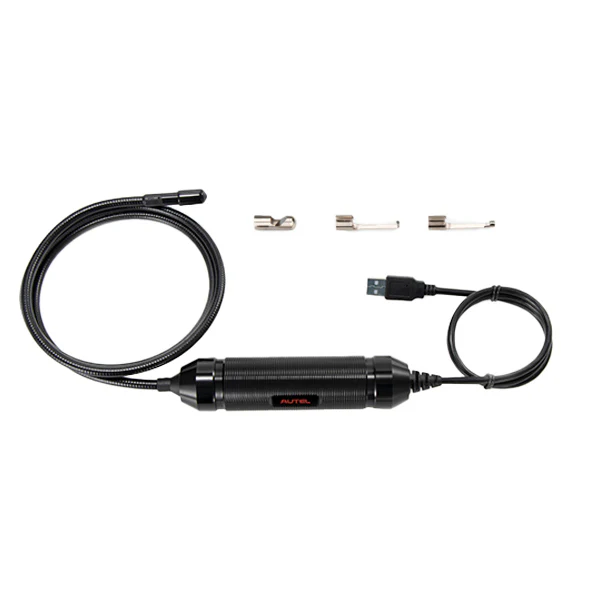

The MV105S digital inspection camera is designed to work with Autel diagnostic tablets. The MV105S features a 5.5mm camera head, LED illumination, and a 1-meter waterproof USB cable. It turns your Autel tablet into a video inspection scope, allowing you to examine difficult-to-reach areas hidden from sight. It is capable of recording digital still images and videos. Includes mirror and magnet attachments. Covered by a one-year limited warranty.

Features:

• The MV105S digital inspection camera is designed to work with Autel diagnostic tablets
• Features a 5.5mm imager head with 1 mega-pixel camera providing 1280x720 resolution
• One-meter waterproof USB connection cable
• Use with tablet MaxiVideo app to record video and capture stills
• Features super bright LEDs to illuminate dark spaces
• Includes mirror and magnet attachments
• Covered by one-year limited warranty



Specifications:

Imager Head Distance	MV105S: 5.5 mm
Camera	1 MP
Resolution	1280 x 720
Depth of Field	2cm to 10cm (0.79” to 3.94”)
LED Beads	8 pcs
Imager Head Cable Length	1 m (39.37")
Waterproof Level (Imager Head)	IP67
Operating Temp.	-10 °C to 70 °C (14 °F to 158 °F )
Storage Temp.	-10 °C to 70 °C (14 °F to 158 °F )



Downloads:

• Quick Start Guide
